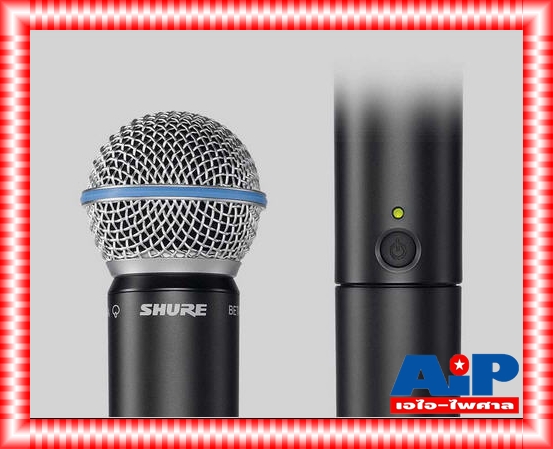

Further Technical Specs
Audio Input Level
gain 0dB -20 dBV maximum
gain -10dB -10 dBV maximum
Gain Adjustment Range
10 dB
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)
Weight
218 g (7.7 oz.) (without batteries)
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)
Features
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
Up to 12 compatible systems per frequency band (region-dependent)
XLR and ¼” output connectors
Microprocessor-controlled internal antenna diversity
Two-color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

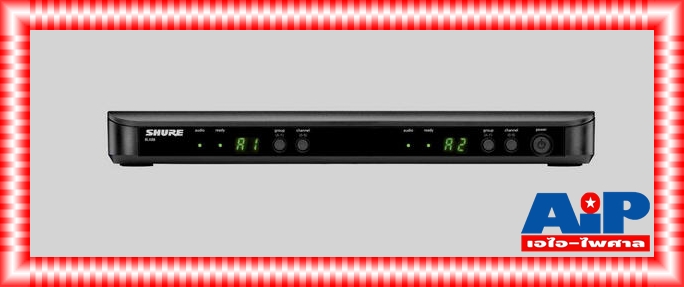

Further Technical Specs
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
40 mm X 388 mm X 116 mm (H x W x D)
Weight
429 g (15.1 oz.)
Housing
Molded ABS
Power Requirements
12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
|
