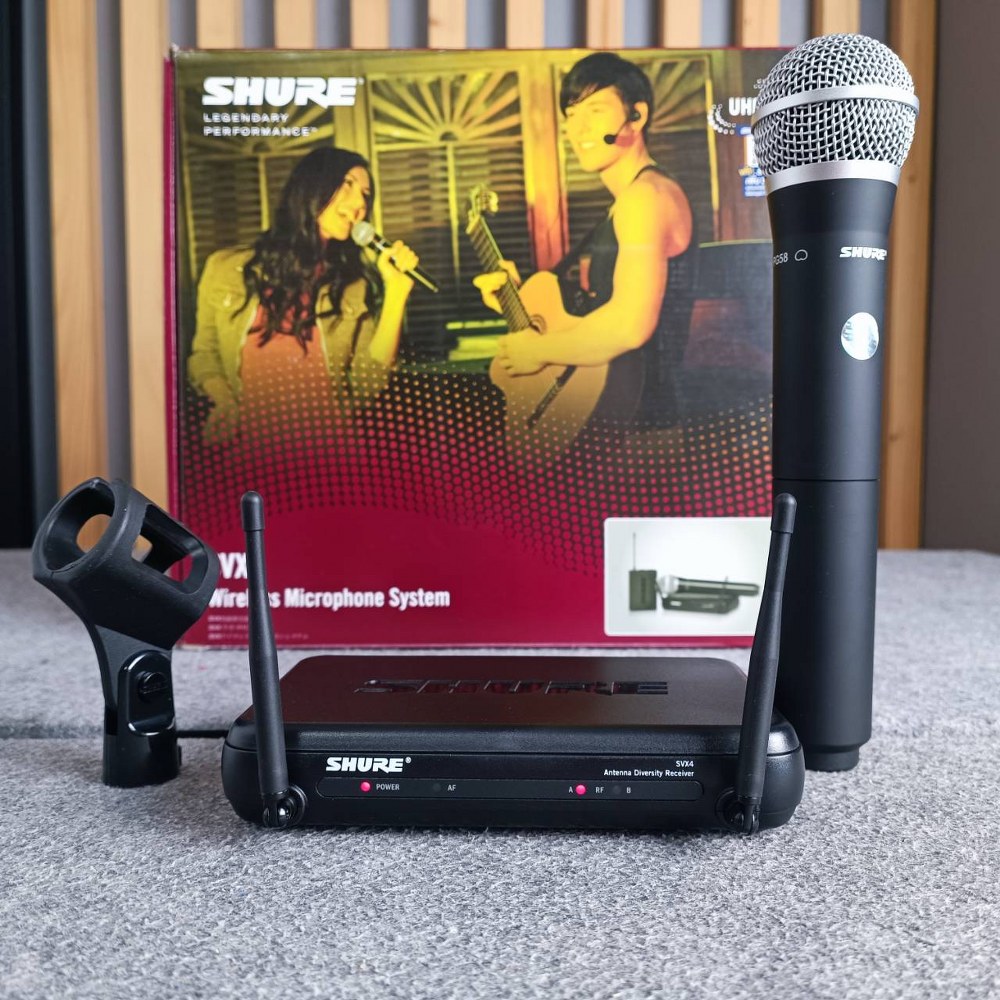

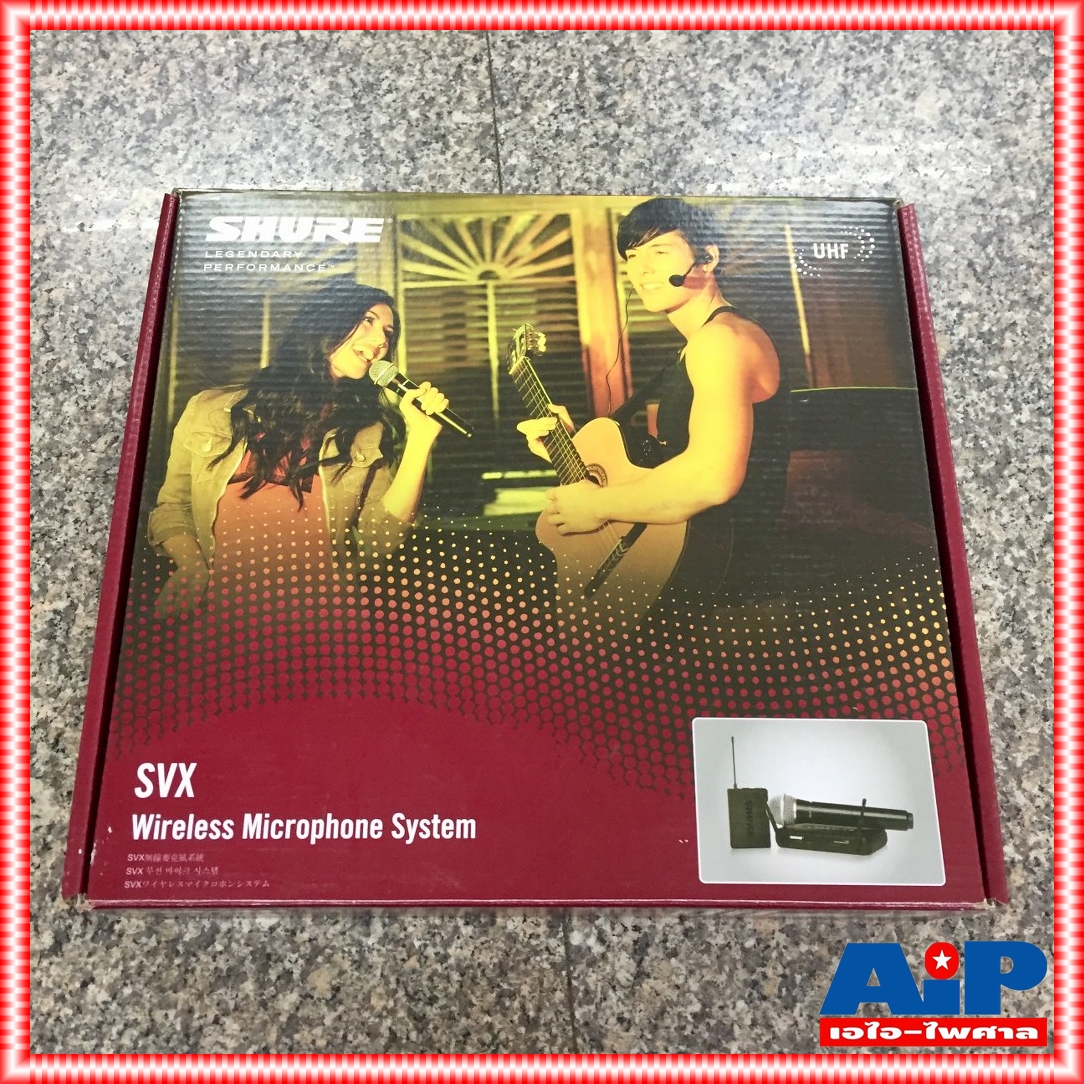

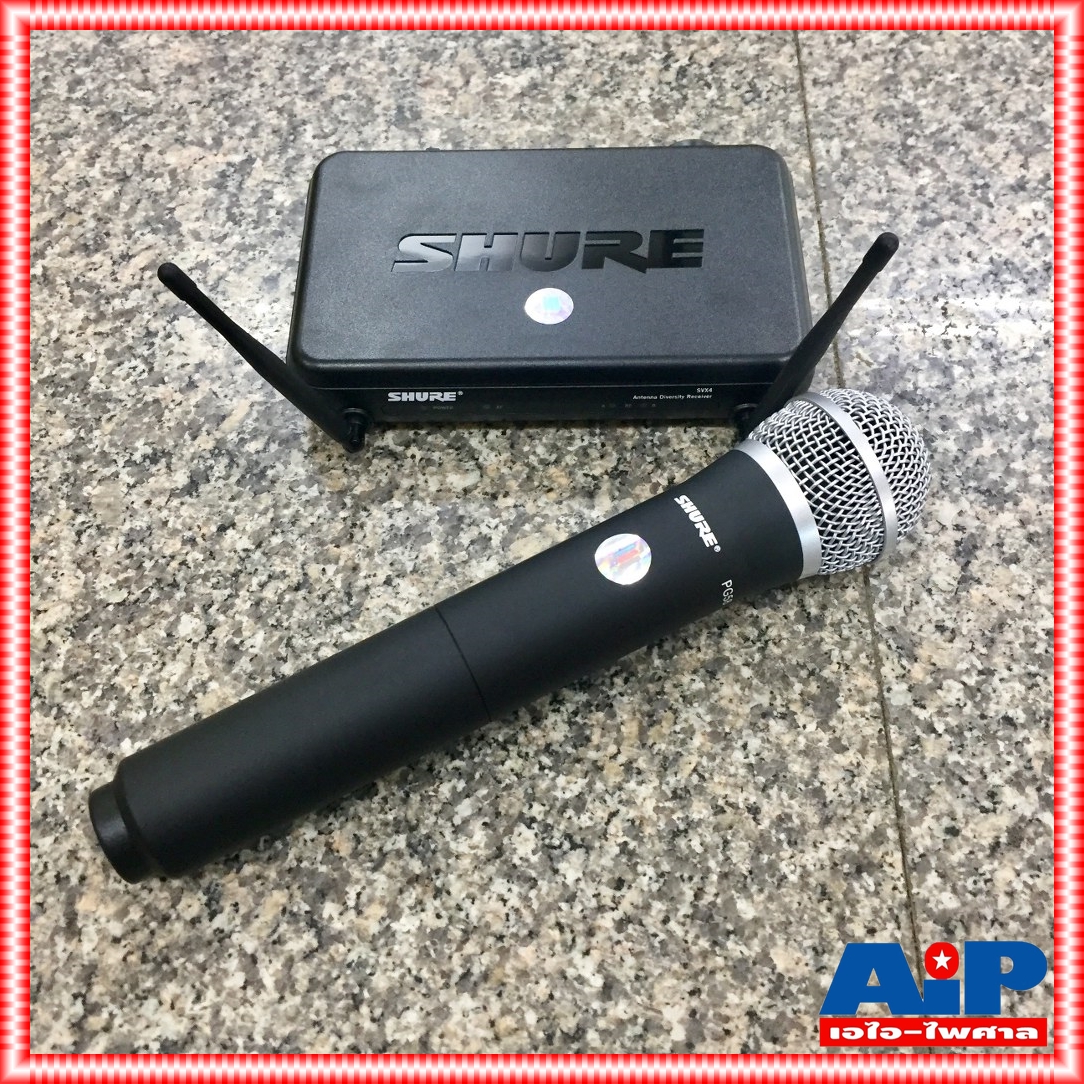

SHURE SVX24TH/PG58-M19 ไมค์ลอยถือ ชุดไมค์ลอยเดี่ยวแบบมือถือ ย่าน UHF SVX 24 TH / PG 58 M 19 SVX24TH/PG58 M19 เอไอ-ไพศาล +++

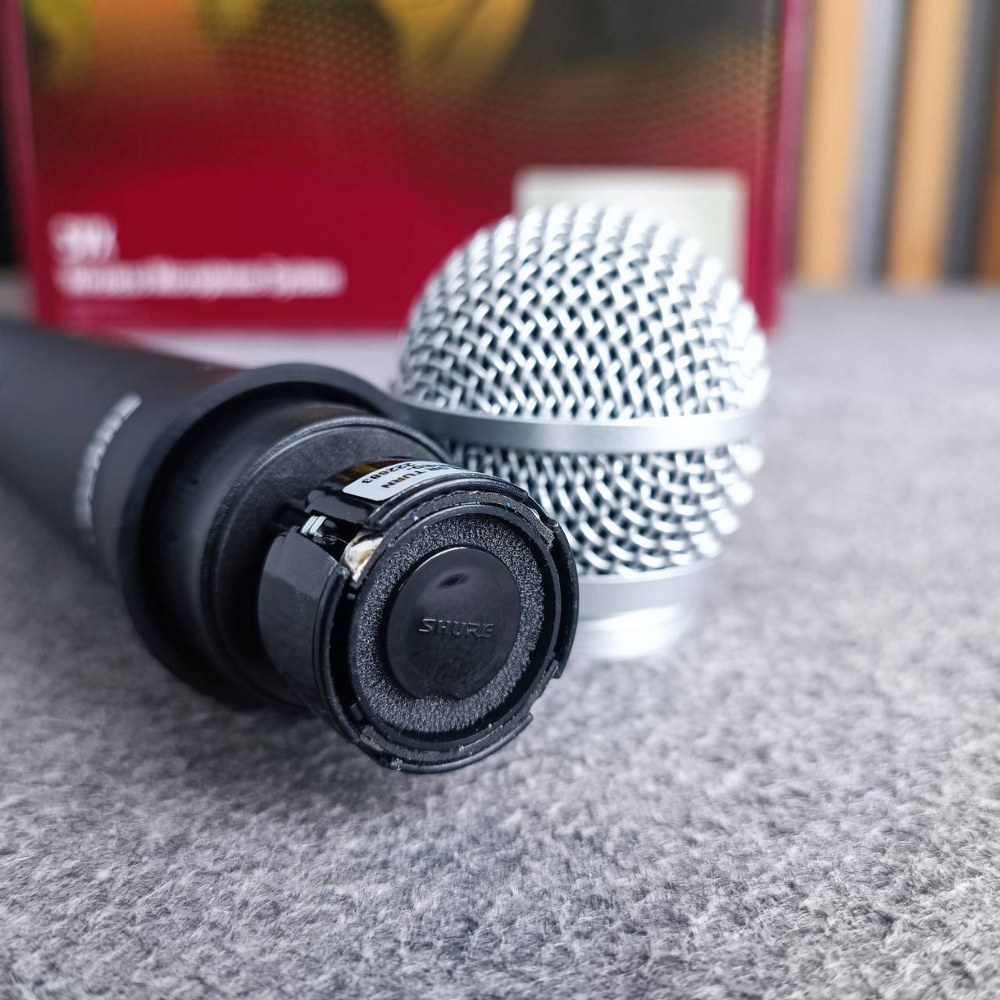

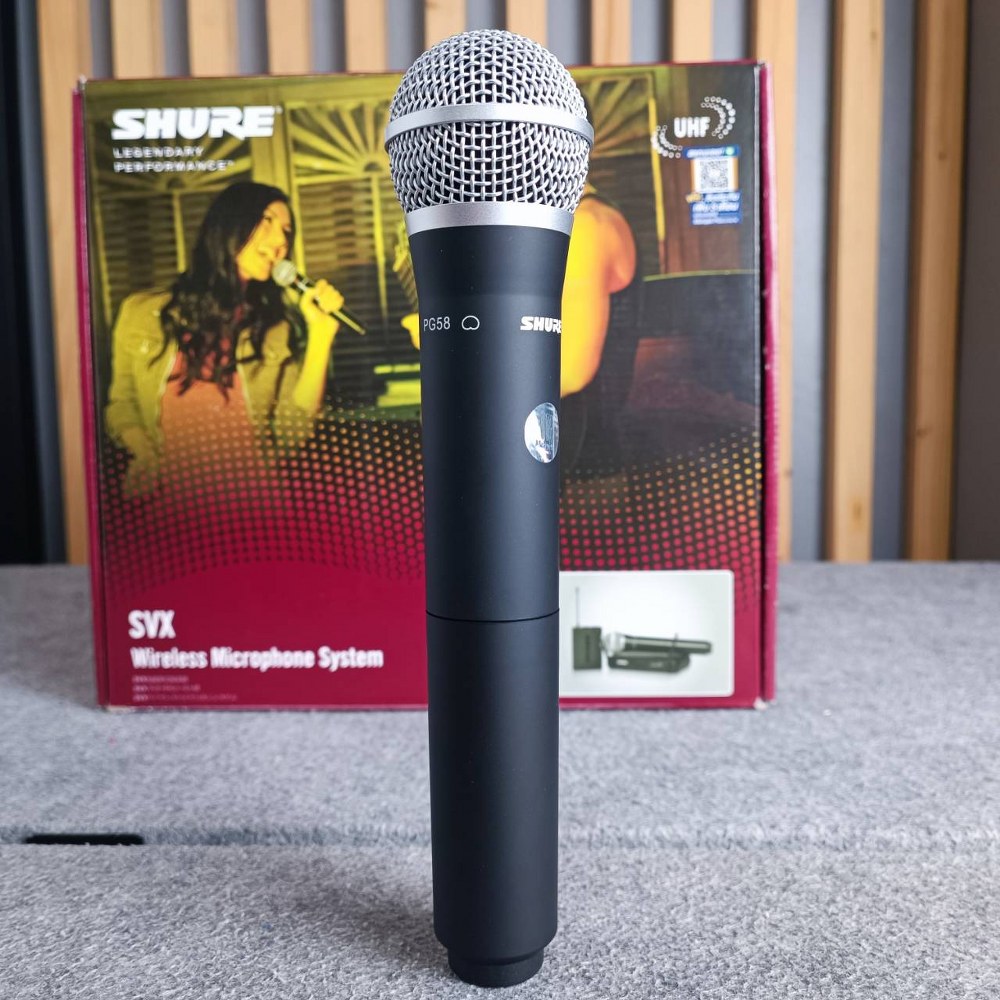

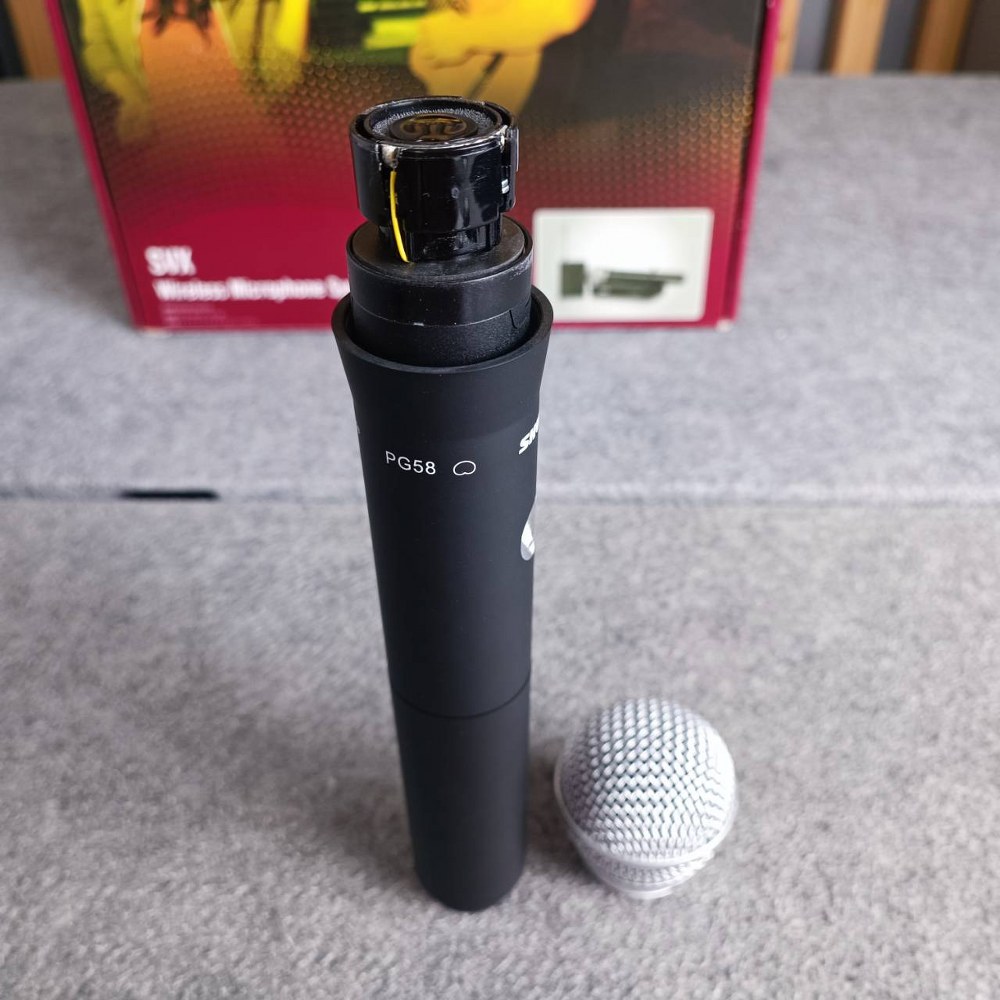

Shure sound quality – PG58 for vocal

Set-Up features

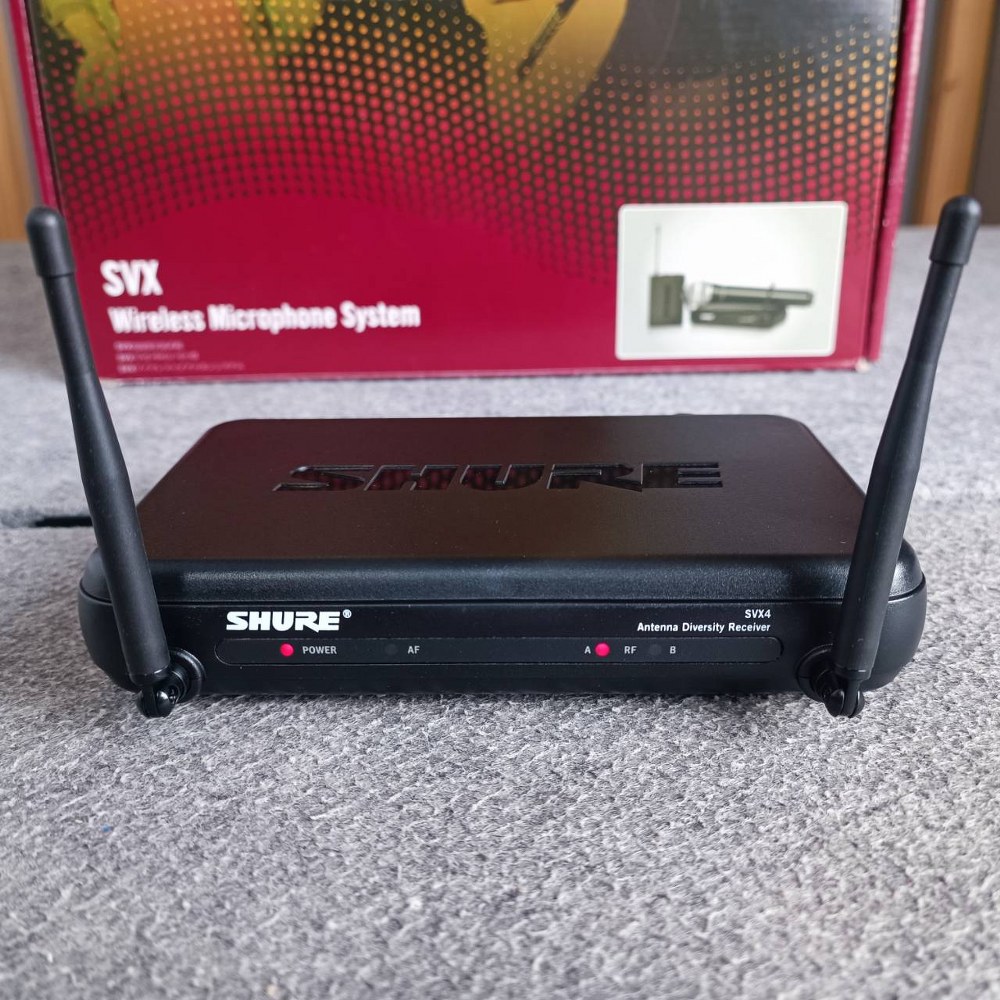

Antenna diversity

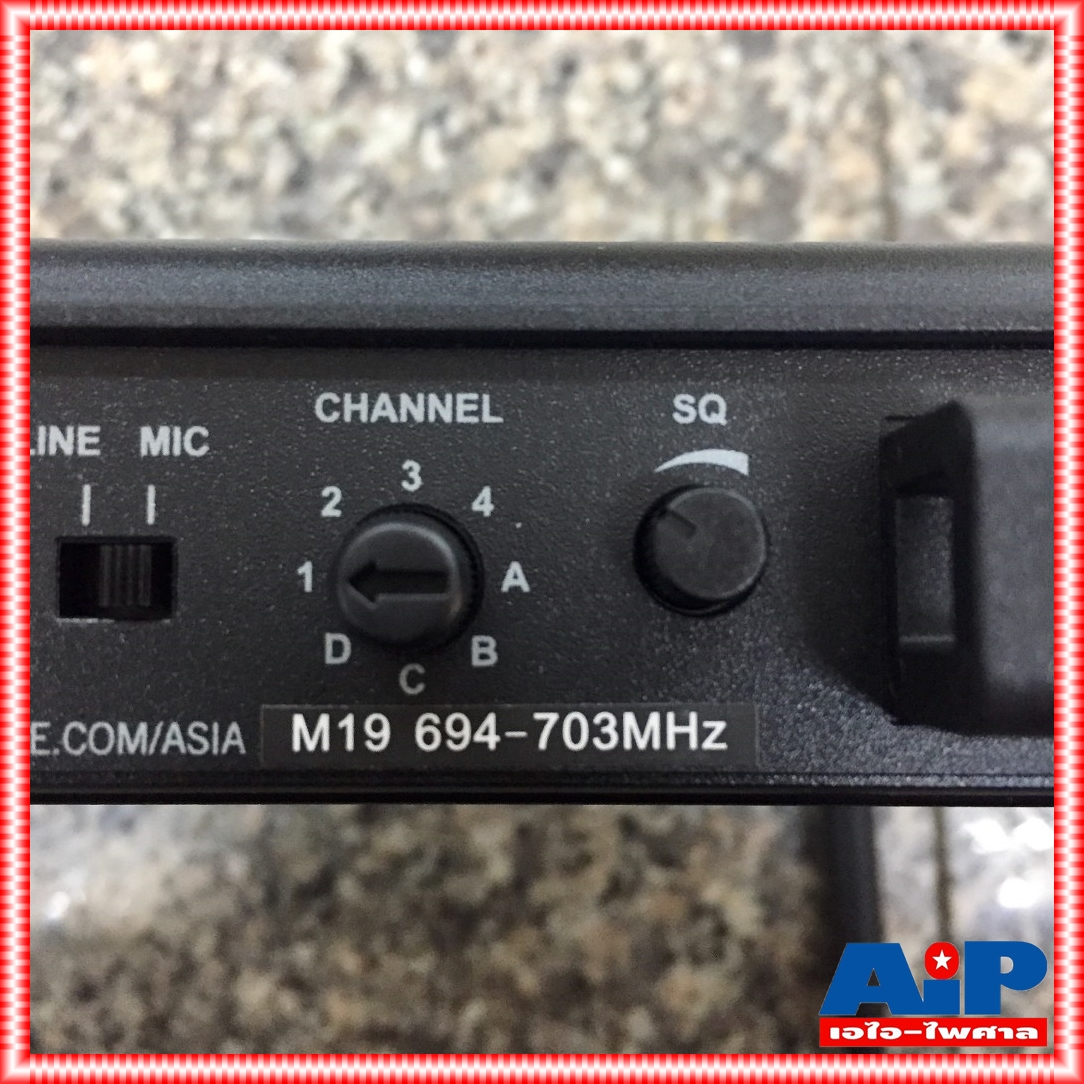

8 selectable channels

Adjustable Squelch

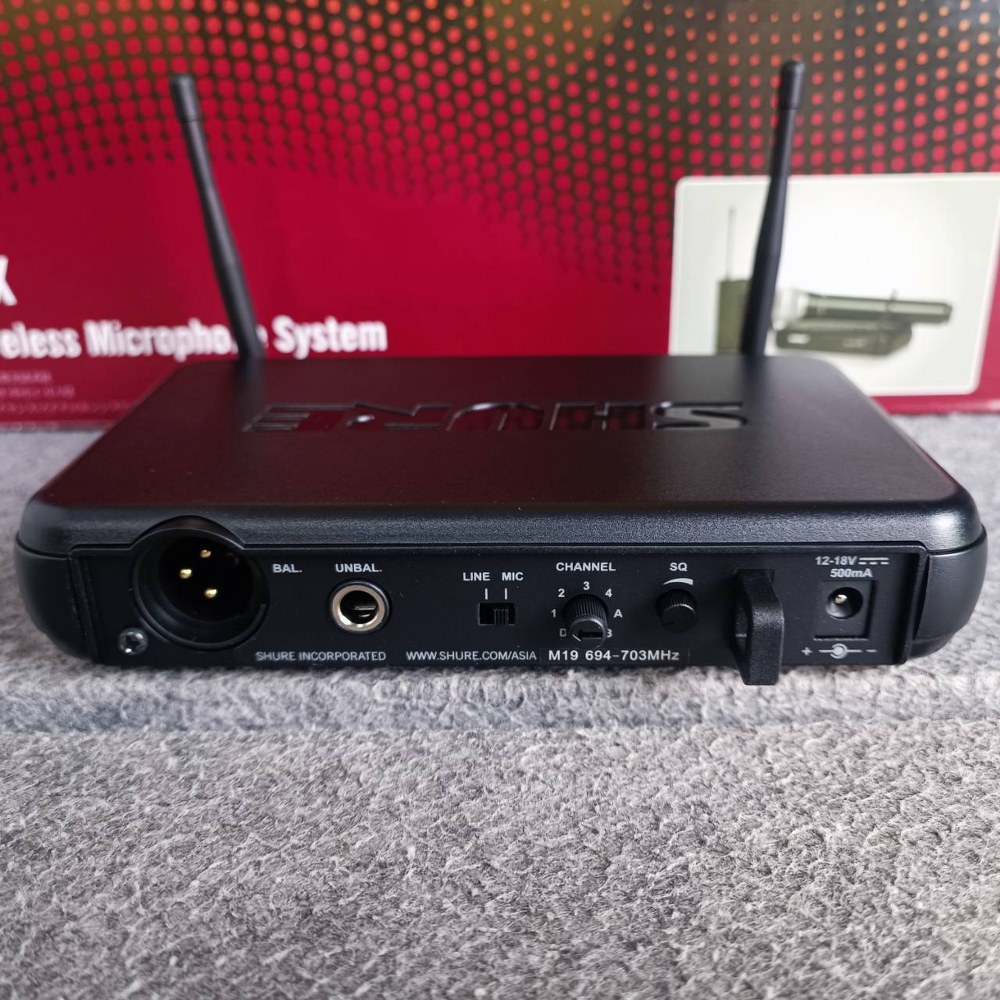

1/4” output & XLR output

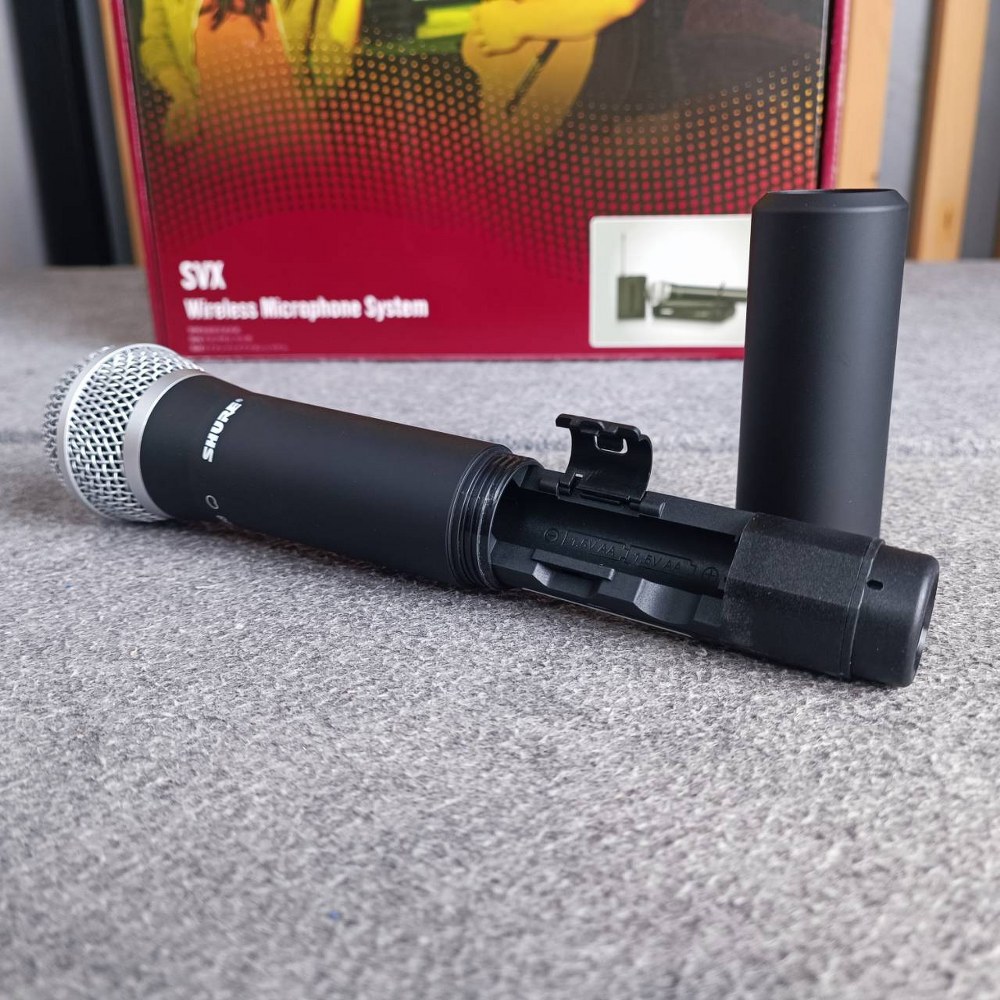

AA battery & PS 21 power supply

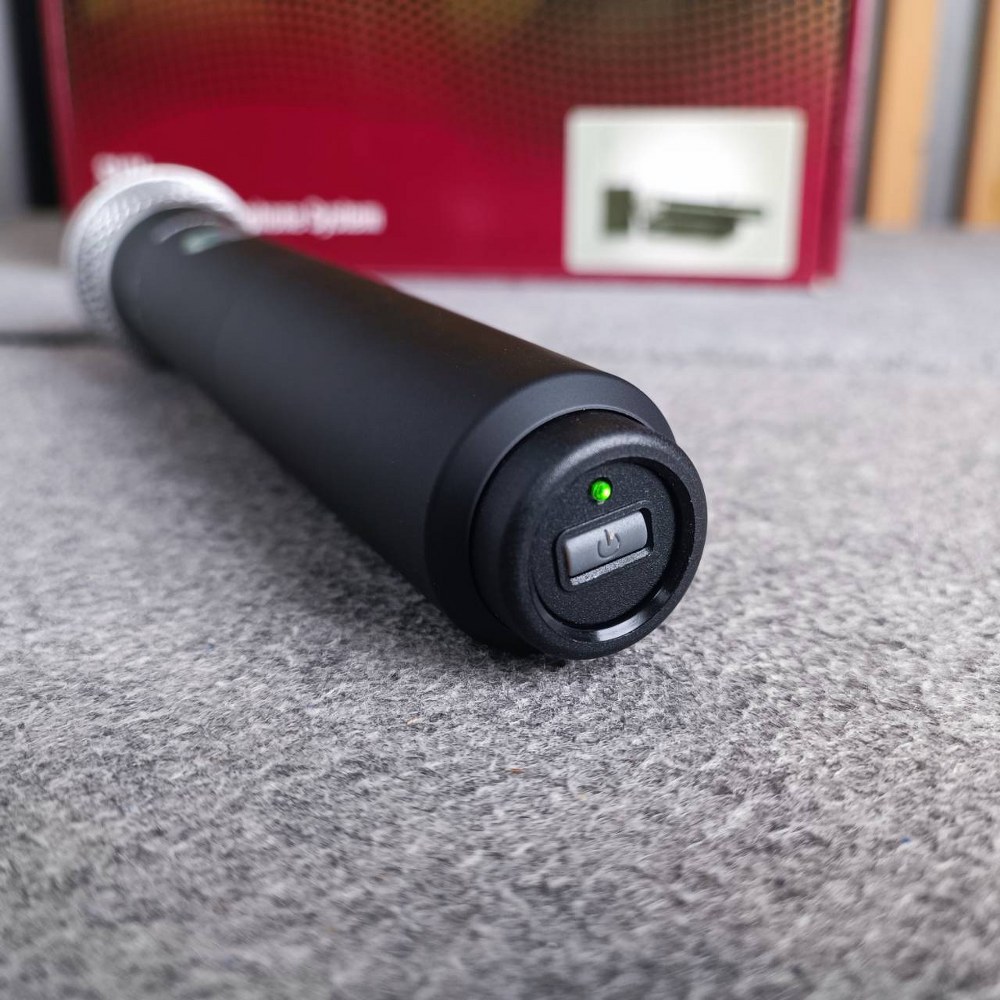

2-position HI/LO Output Power Switch (Handheld)

Performance

Up to 16MHz Bandwidth (UHF)

Up to 4 compatible channels (country dependent)

System technical specifications

•Compatible systems per frequencyThis is how many times a sound or radio wave oscillates in one second.Read moreGo to the glossary band (up to): 4

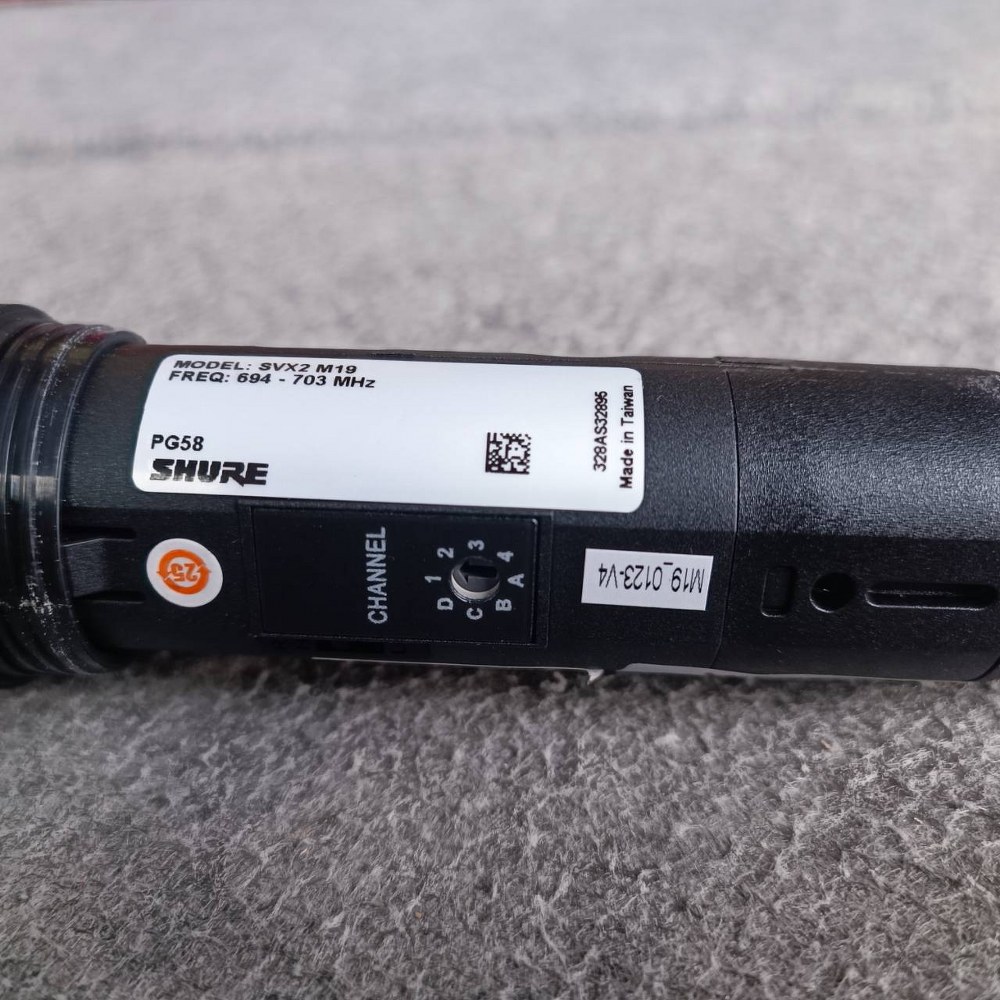

•Selectable frequencies: 8

•Audio Reference CompandingAudio Reference Companding improves wireless sound quality by having a more efficient companding scheme. Read moreGo to the glossary: No

•Antenna Options: No

•PC Control: No

•Battery, Endurance: 10

•Environment: Small to medium stages

Further Technical Specs

Working Range (Line of Sight)

•HI power mode: 75 m (250 ft)

•LO power mode: 18 m (60 ft)

Note: Actual range depends on RF signal absorption, reflection and interference.

Audio Frequency ResponseThis is the range of frequencies, from the lowest to the highest, that a mic can pick up.Read moreGo to the glossary

•50 Hz to 15 kHz

Note: Dependent on microphone type

Total Harmonic DistortionTotal Harmonic Distortion is a measure of how much electrical noise a device produces. Read moreGo to the glossary (Ref. ±48 kHz deviation, 1 kHz tone)

•<1%

For J9 (New Zealand): Total Harmonic DistortionTotal Harmonic Distortion is a measure of how much electrical noise a device produces. Read moreGo to the glossary (Ref. ±26 kHz deviation, 1 kHz tone)

•<1%

Dynamic RangeThis is the difference between the queitest and loudest sound that a mic can pick up.Read moreGo to the glossary

•90 dB A-weighted, typical

Operating Temperature Range

•–10°C (14°F) to 50°C (122°F)

Note: Battery characteristics may limit this range. Transmitter Audio Polarity

Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
