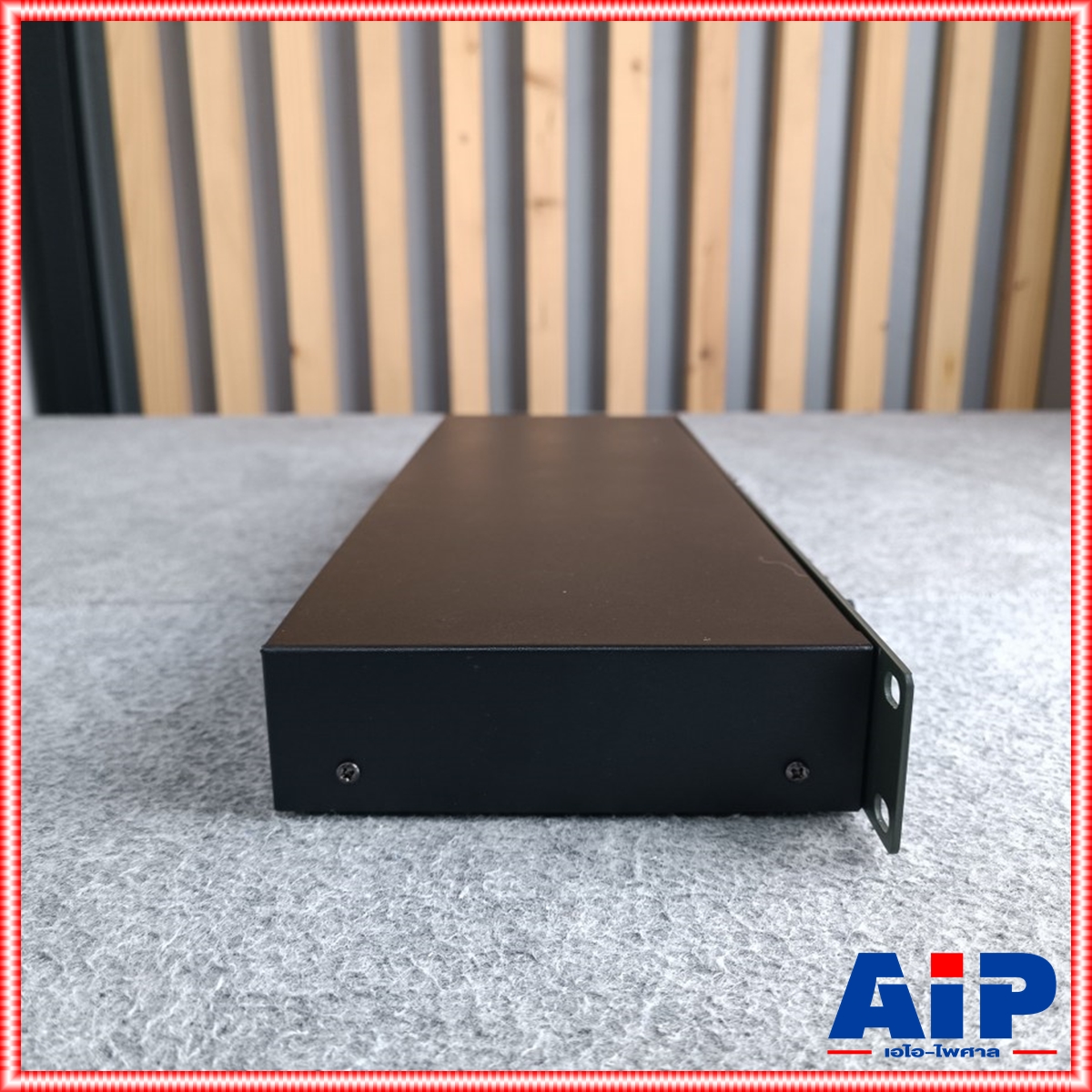

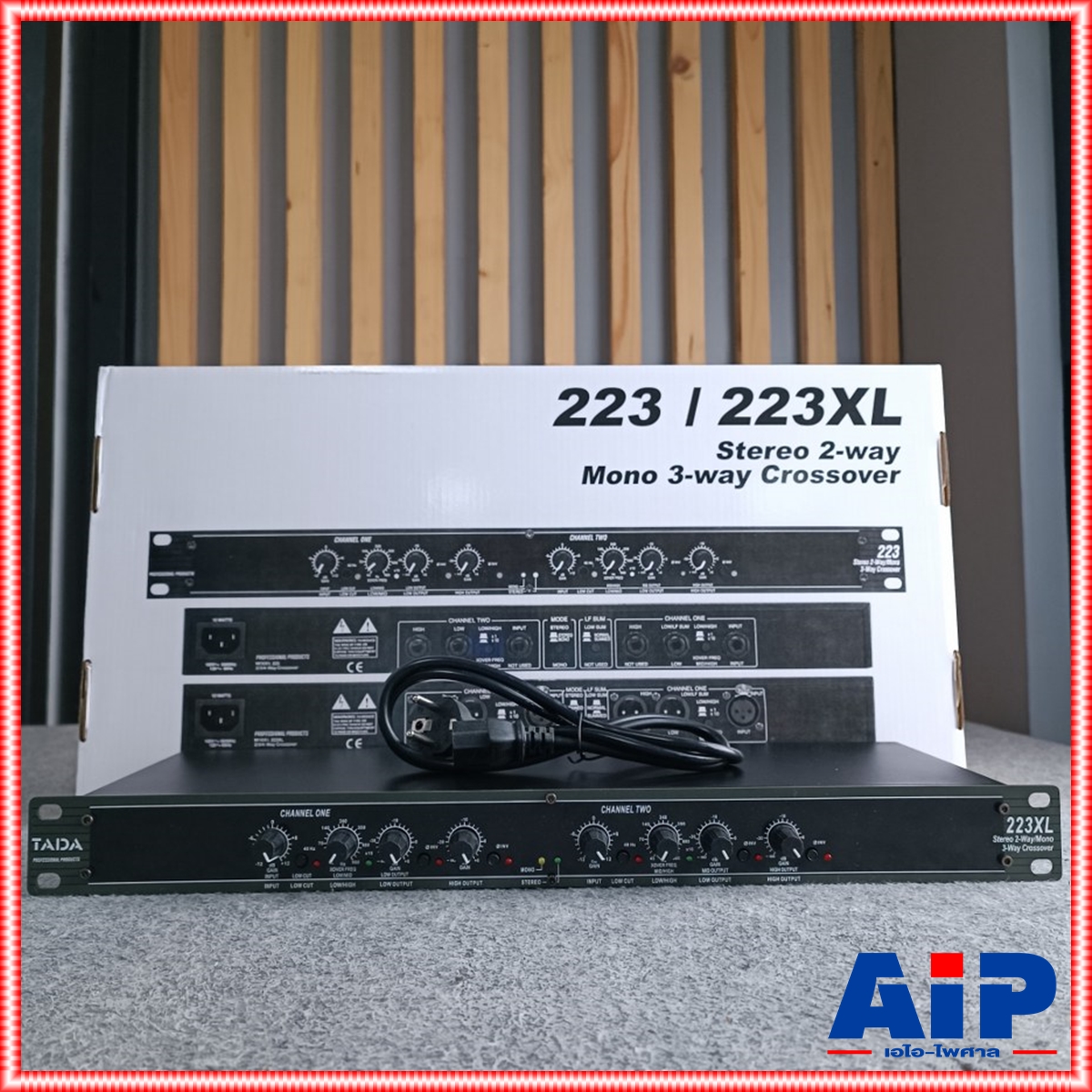

TADA 223XL crossover ครอสโอเวอร์อนาล็อก เครื่องแยกสัญญาณเสียง 223XL Electronic crossover TADA รุ่น 223 XL ครอส2ทาง 223xl สเตอริโอ 2 ทาง โมโน 3 ทาง เอไอ-ไพศาล

 CROSSOVER TADA

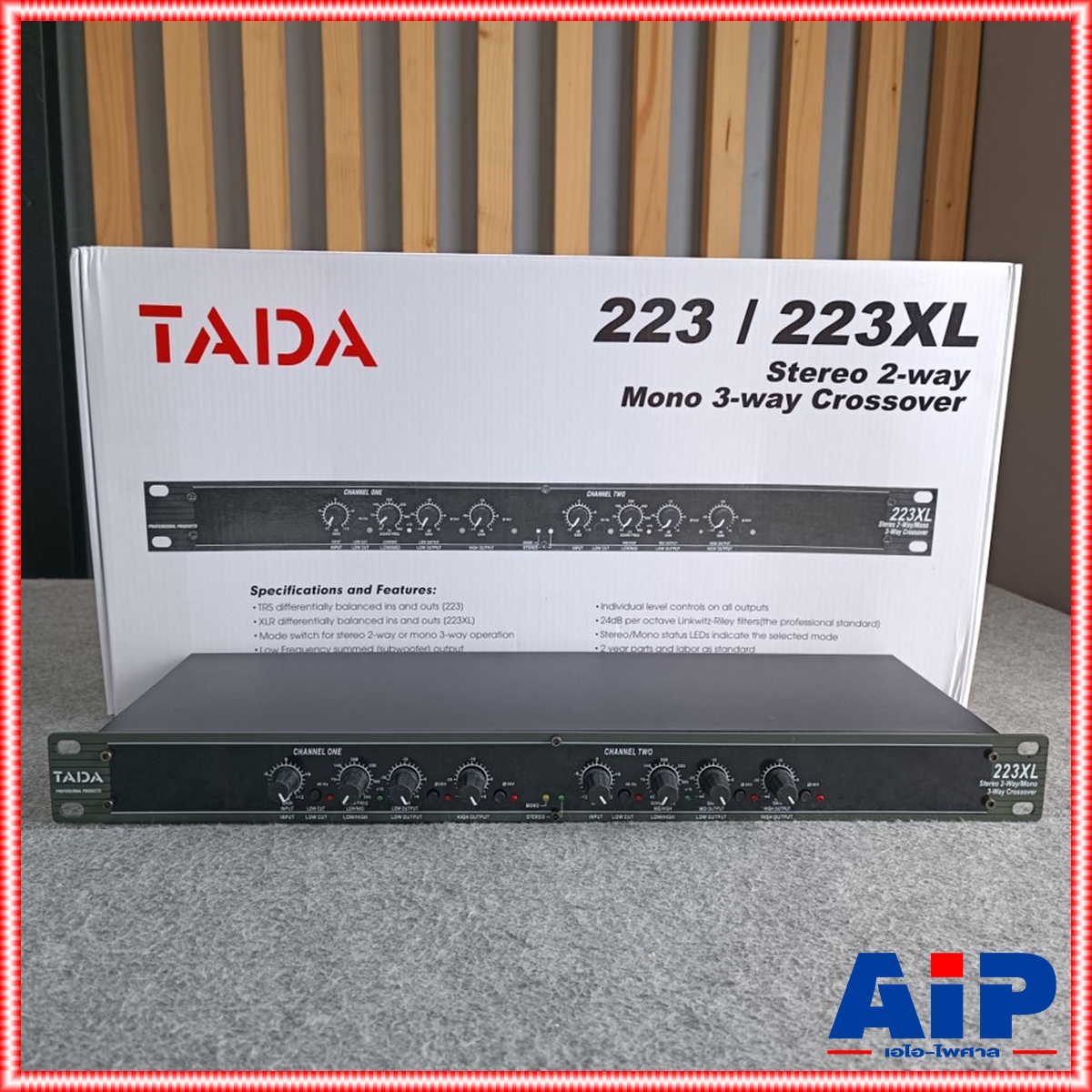

 SH 223XL     STEREO 2-WAY/MONO 3-WAY CROSSOVER

Specifications

Crossover 223XL

Inputs

Connectors: 1/4" TRS or XLR

Type: Electronically balanced/unbalanced, RF filterd Impedance: Balanced >50KQ, unbalanced >25K

Max Input Level : +22dBu typical, balanced or unbalanced

CMRR: >40dB, typically >55dB at 1kHz

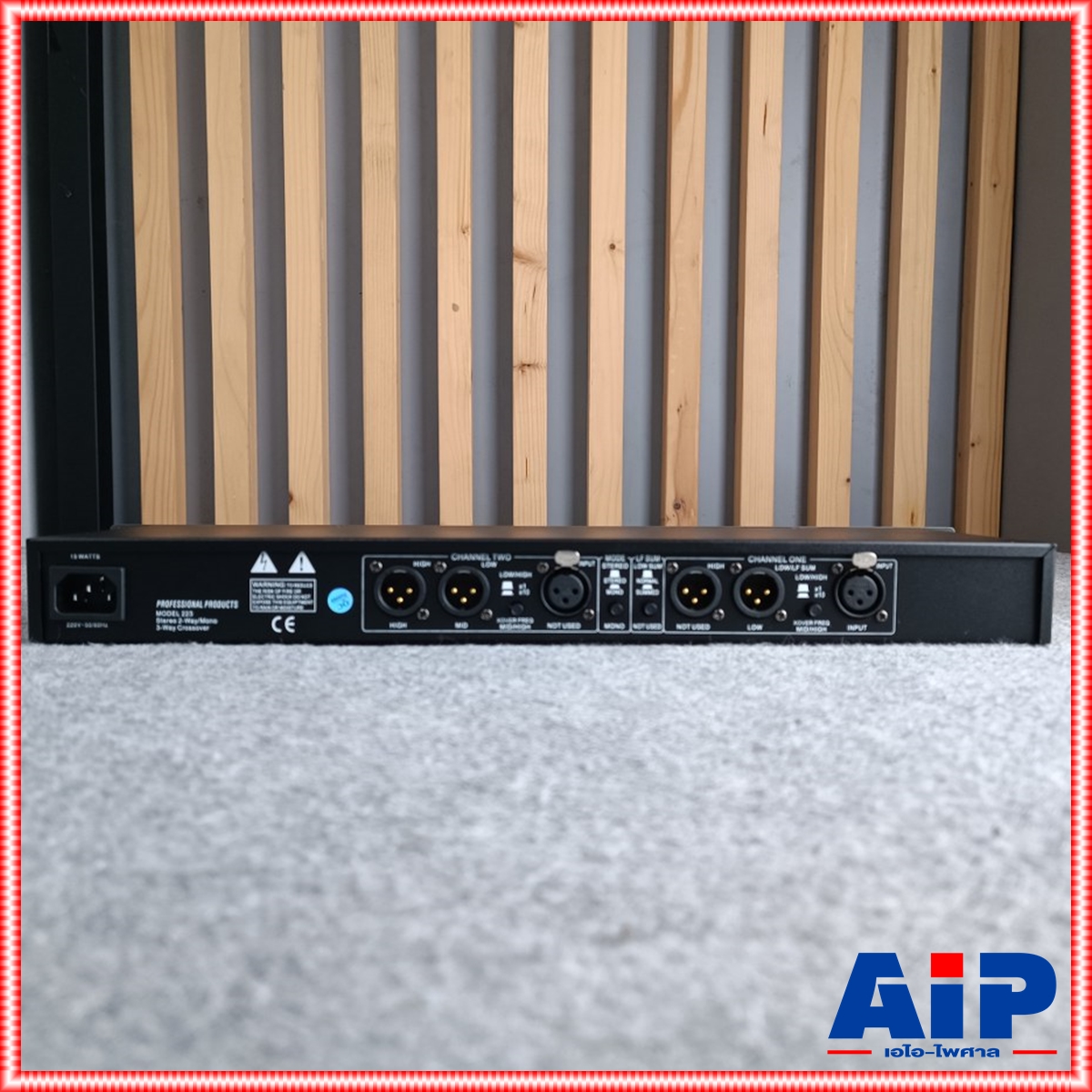

Outputs

Connectors: 1/4" TRS

Type: Impedance balanced/unbalanced, RF filterd

Impedance: Balanced 2002, unbalanced 100

Max Input Level :>+21dBu balanced or unbalanced into 2k or greater

Outputs

Connectors: XLR

Type: Electronically balanced/unbalanced, RF filterd

Impedance: Balanced 602, unbalanced 300

Max Input Level :>+20dBu balanced or unbalanced into 600 or greater

Performance

Bandwidth: 20 Hz to 20kHz, +0/-0.5dB

Frequency Response: <3 Hz to > 90kHz, +0/-3 dB

Signal-to-Noise: Ref +4 dBu, 22kHz measurement bandwidth

                                   Stereo Mode                                   Mono Mode

                                   > 94 dB                                              > 94 dB

Low-Mid Output:                                                                  > 94 dB

Mid Output:                > 93 dB

High-Mid Output:                                                                  > 92 dB

High Output:               > 90 dB                                             > 88 dB

                                   > 94 dB                                             > 94 dB

Mid Output:                                                                          > 93 dB

High Output:               > 91 dB                                             > 91 dB

Dynamic Range: >106 dB unweighted, any output

THD+Noise: <0.004% at+4 dBu, 1 kHz

                      <0.04% at+20 dBu, 1 kHz

Interchannel Crosstalk: <-80 dB, 20 Hz to 20 kHz

Crossover Frequencies Stereo Mode:

Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

Low/High: 450 Hz to 9.6 kHz

Mono Mode:

Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)

Low-Mid/High-Mid: 450 Hz to 9.6 kHz

High-Mid/High: 450 Hz to 9.6 kHz

Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable

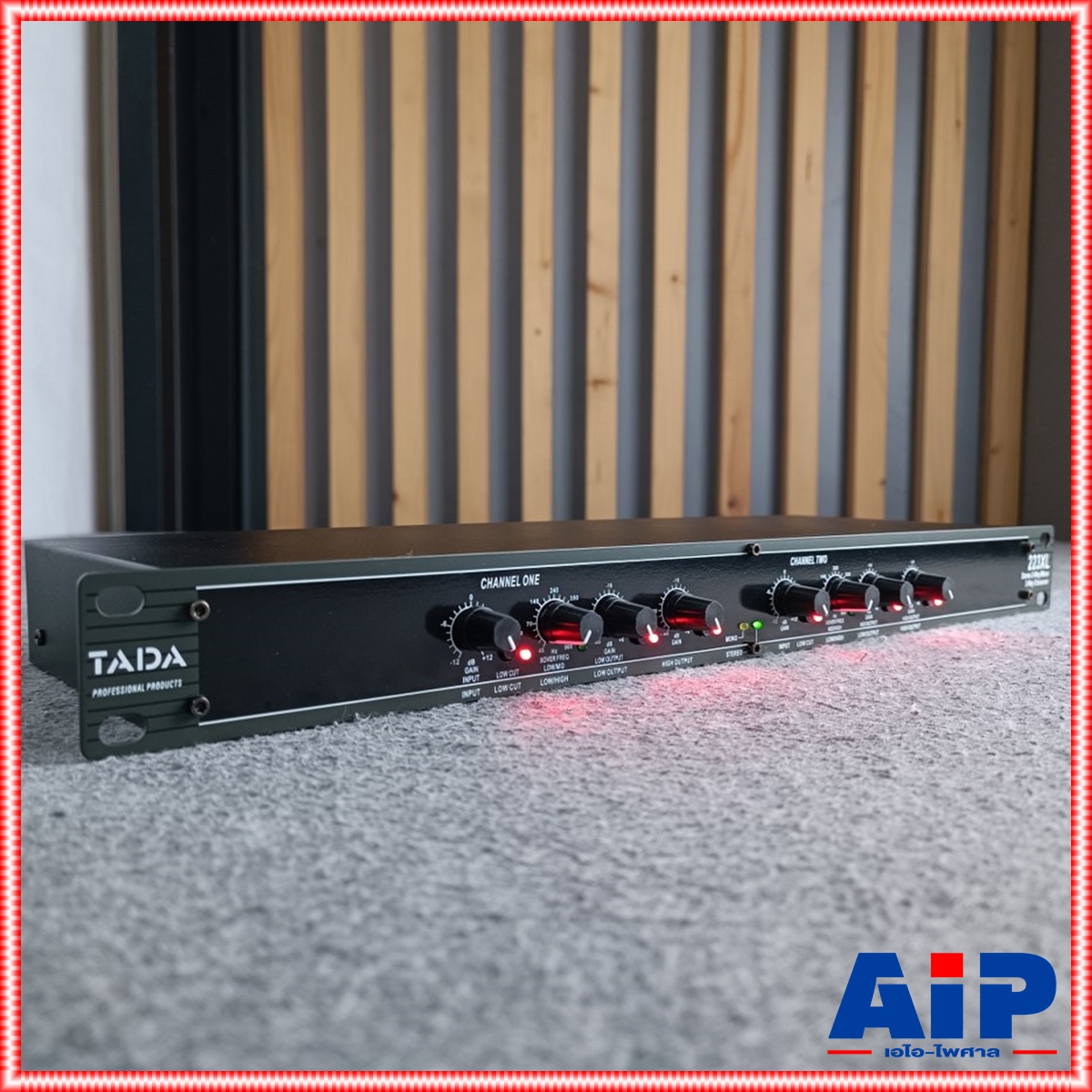

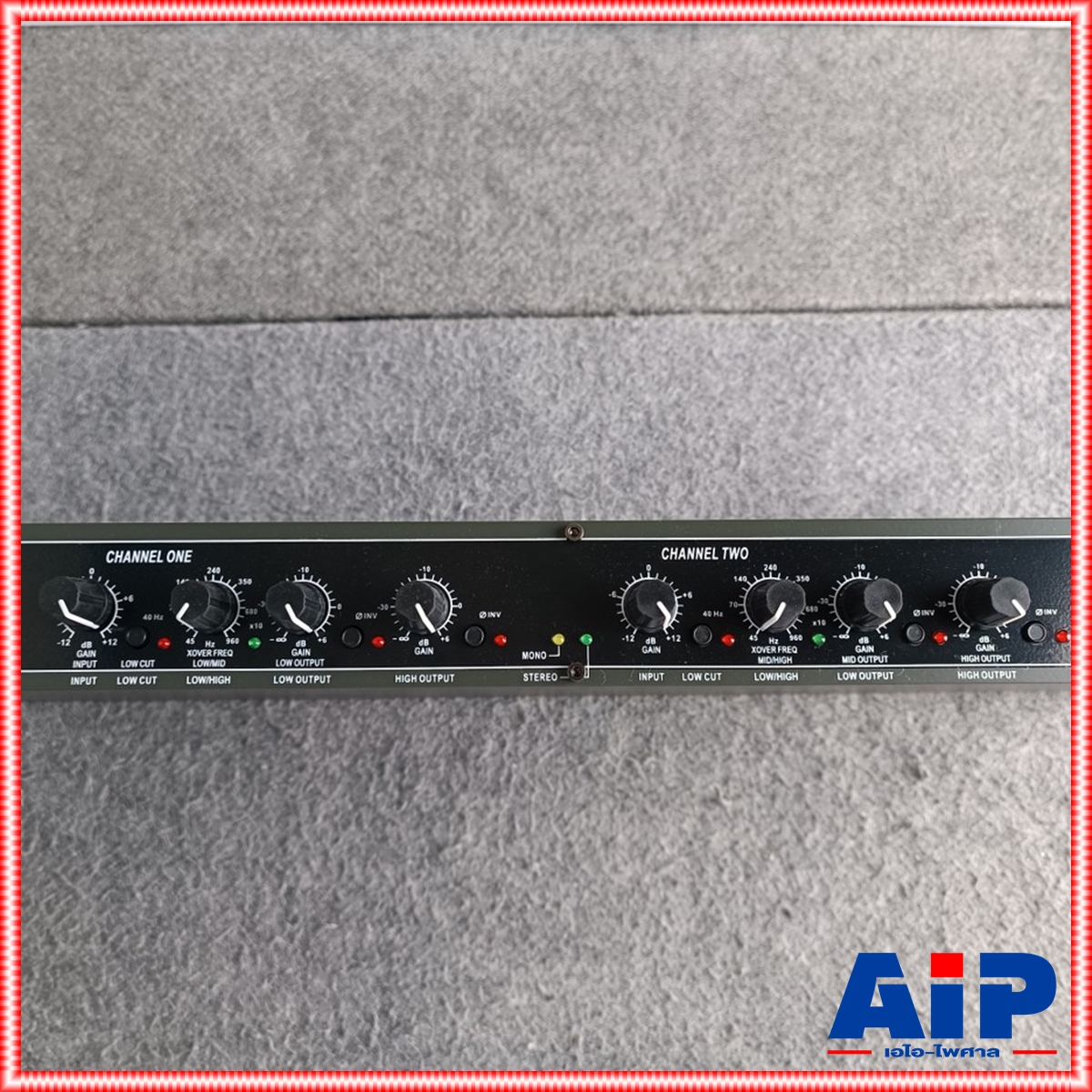

Function Switches

Front Panel: Low Cut: Activates 40 Hz Butterworth, 12dB/octave high-pass filter,

one switch per channel

Phase Invert: inverts the phase at the output, one switch per output.

Rear Panel: x10: Multiplies crossover frequency range by 10, one switch per channel. Mode: Selects stereo/mono and 2/3/4-way operation

LF Sum: Selects normal (stereo) or mono-summed low frequency operation

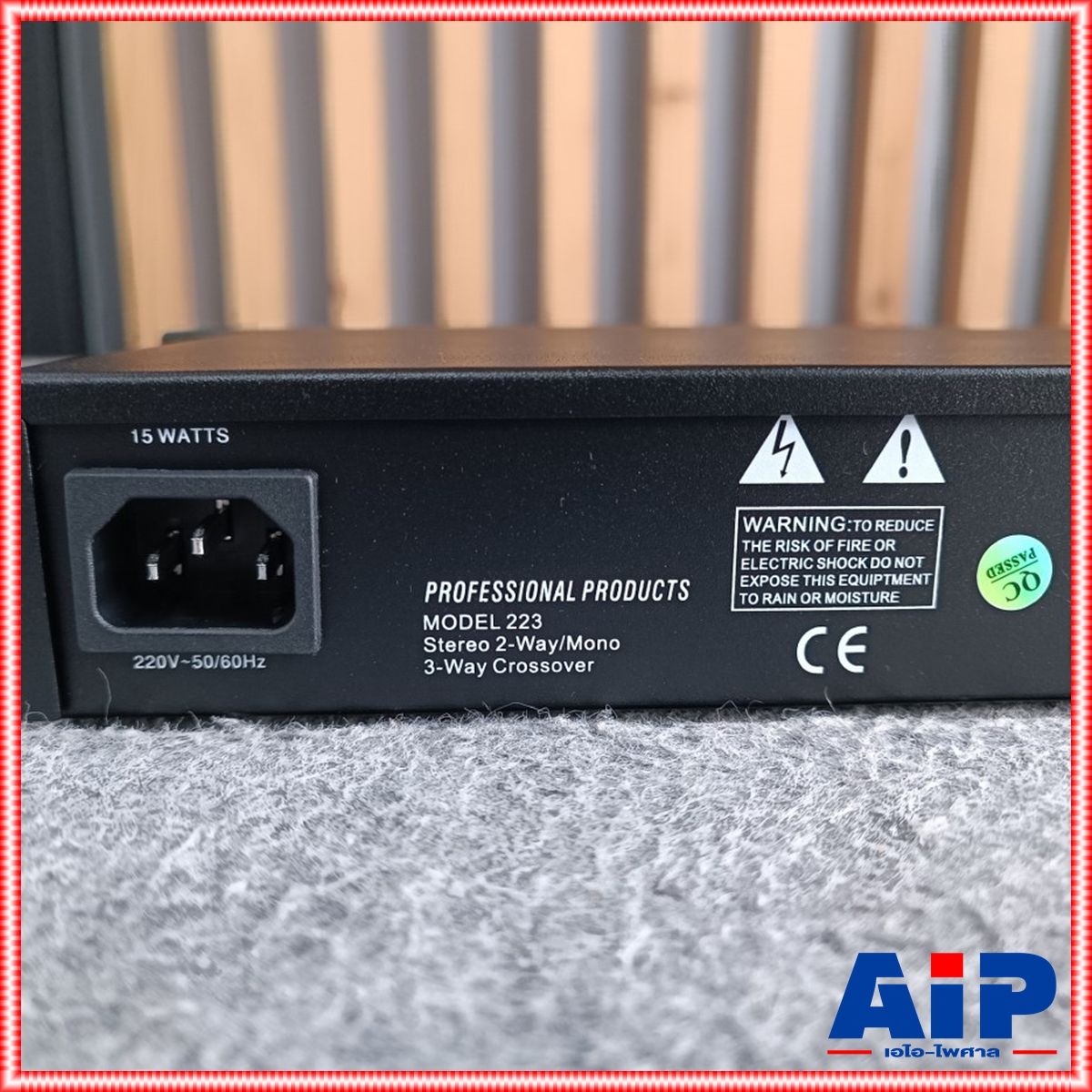

Power Supply

Operating Voltage: 100 VAC 50/60 Hz, 120 VAC 60 Hz

                                   230 VAC 50/60 Hz

Power Consumption: 15 Watts

Mains Connection: IEC 320 receptacie

Indicators

Stereo Operation : Green LED

Mono Operation: Yellow LED Low Cut: Red LED per channel

x10: Green LED per channel

Phase invert: Red LED per output (3 per channel)

Physical

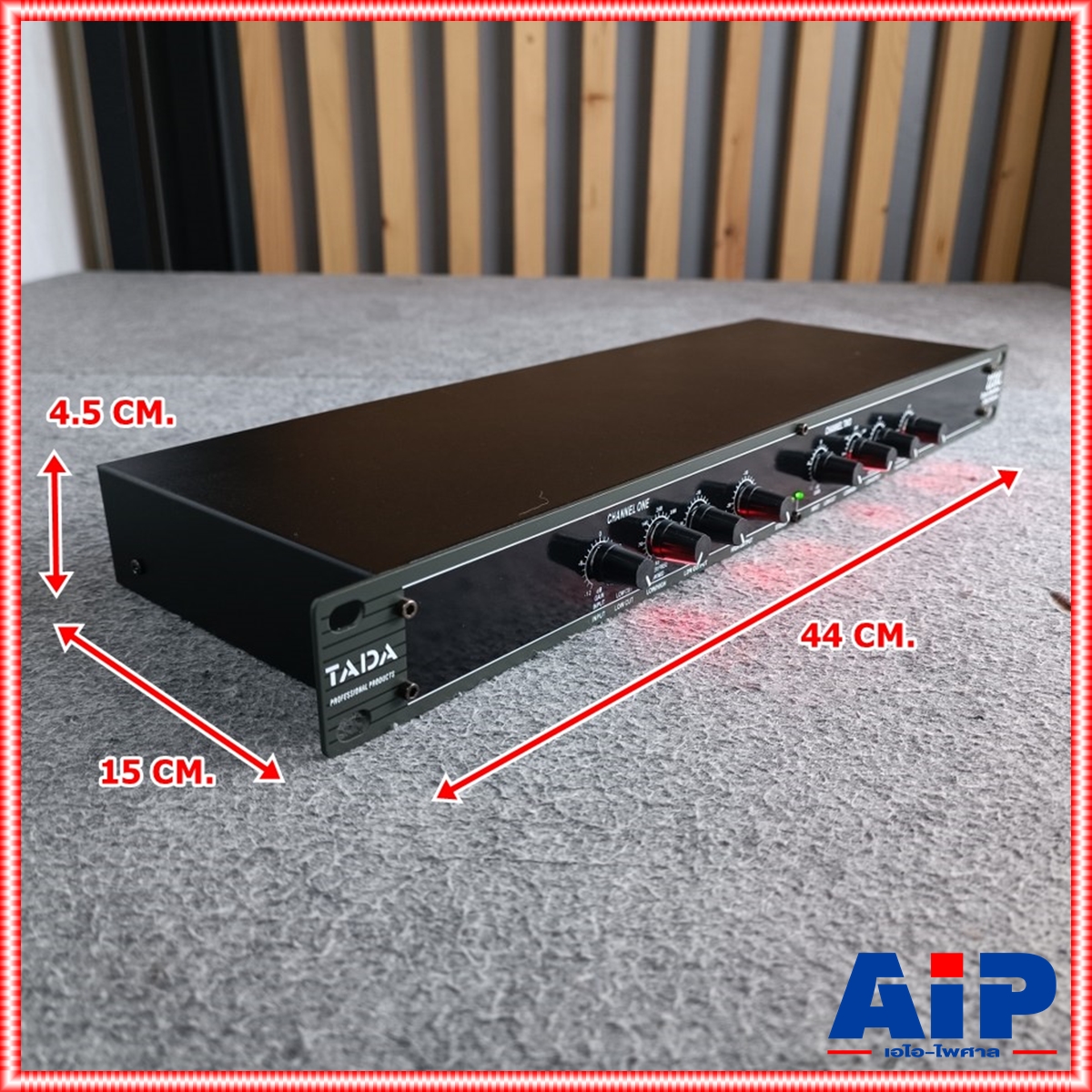

Dimensions: 1.75" H x 19" W x 6.9" D (4.4 cm x 48.3 cm x 17.5 cm)

Weight: 234: 4.0 lbs. (1.8 kg) 223: 3.7 lbs. (1.7 kg)

Shipping Weight: 234: 5.8 lbs. (2.6 kg) 223: 5.4 lbs. (2.5 kg)
