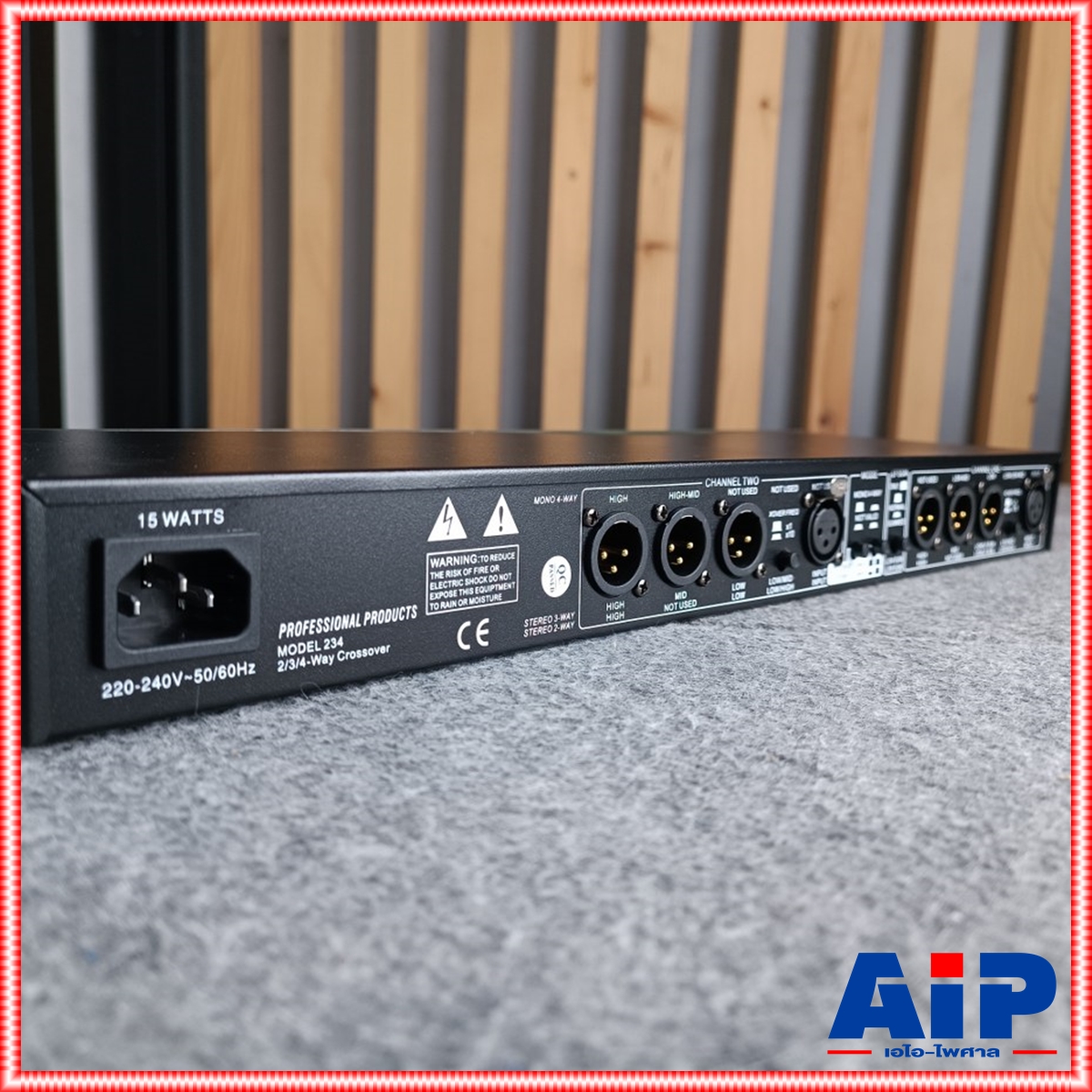

TADA 234XL crossover

SPECIFICATIONS

INPUT

Connectors:    1/4" TRS or XLR

Type:                Electronically balanced/unbalanced, RF filtered

Impedance:     Balanced > 50kQ, unbalanced > 25k

Max Input Level: CMRR: +22 dBu typical, balanced or unbalanced

CMRR:                 >40 dB, typically > 55 dB at 1 kHz

OUTPUT

Connectors: 1/4" TRS

Type: Impedance-balanced/unbalanced, RF filtered

Impedance: Balanced 2009, unbalanced 100

Max Output Level: >+21 dBu balanced/unbalanced into 2 k or greater

OUTPUT

Connectors: XLR

Type: Electronically-balanced/unbalanced, RF filtered

Impedance: Balance 600, unbalance 30Ω

Max Output Level: >+20 dBu balanced/unbalanced into 600 or greater

PERFORMANCE:

 Bandwidth: 20 Hz to 20 kHz +0/-0.5 dB

Frequency Response:<3 hz to> 90 kHz, +0/-3 dB

 Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth

                                 Stereo Mode:                Mono Mode:

                                    >94 dB                         >94 dB

Low-Mid Output:                                           >94 dB

Mid Output:               >93 dB

High-Mid Output:                                          >92 dB

High Output:               >90 dB                       >88 dB

                                      >94 dB                       >94 dB

 Mid Output:                                                   >93 dB

High Output:               >91 dB                      >91 db

Dynamic Range: >106 dB, unweighted, any output

THD+Noise: <0.004% at +4 dBu, 1kHz

                      <0.04% at +20 dBu, 1 kHz

InterChanel Crosstalk: <-80 dB, 20 Hz to 20 kHz

FUNCTION SWITCHES:

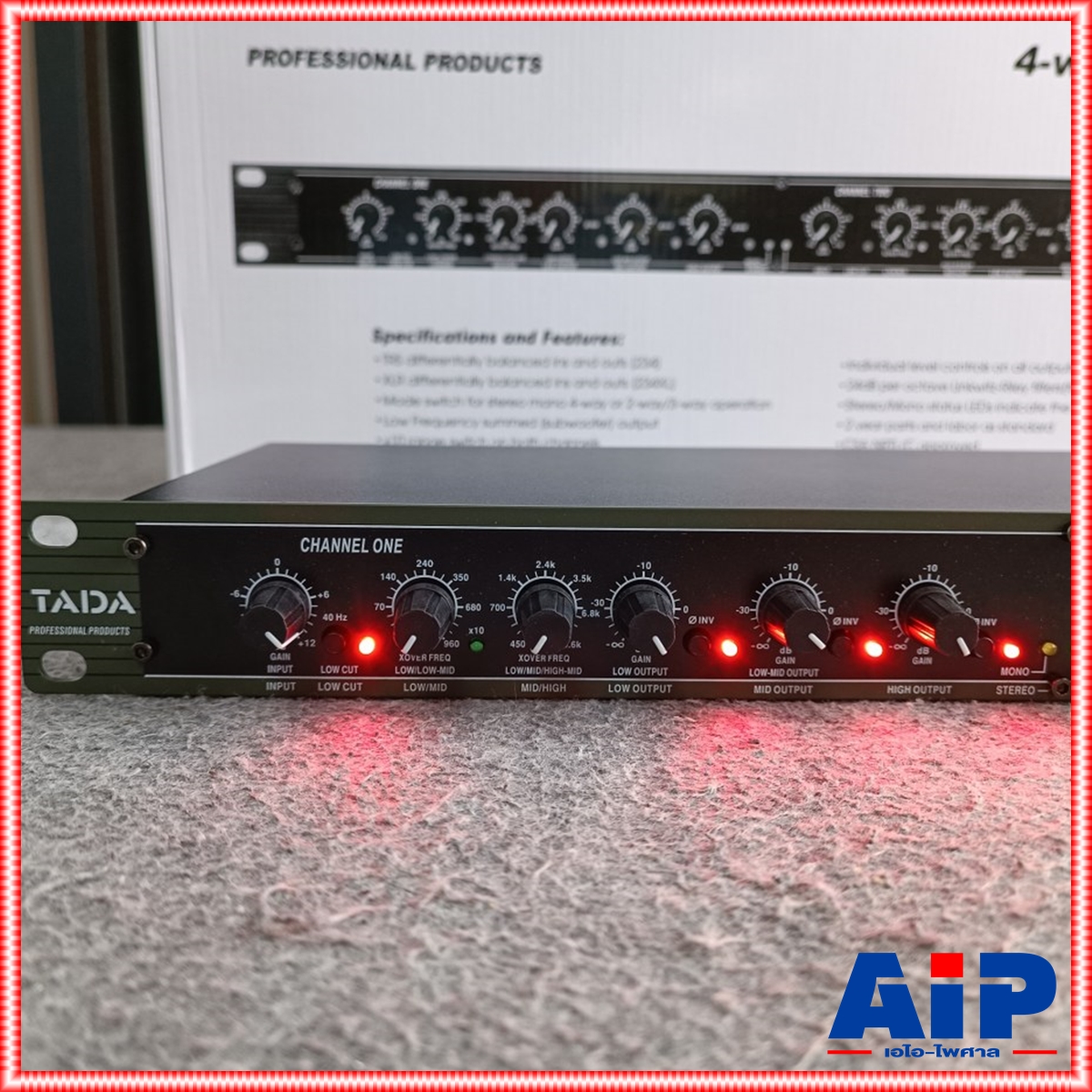

Front Panel:

 Low Cut                  Activates 40 Hz Butterworth, 12 dB/octave

                                 high-pass filter, one switch per channel.

Phase Invert:          Inverts the phase at the output, one switch per output.

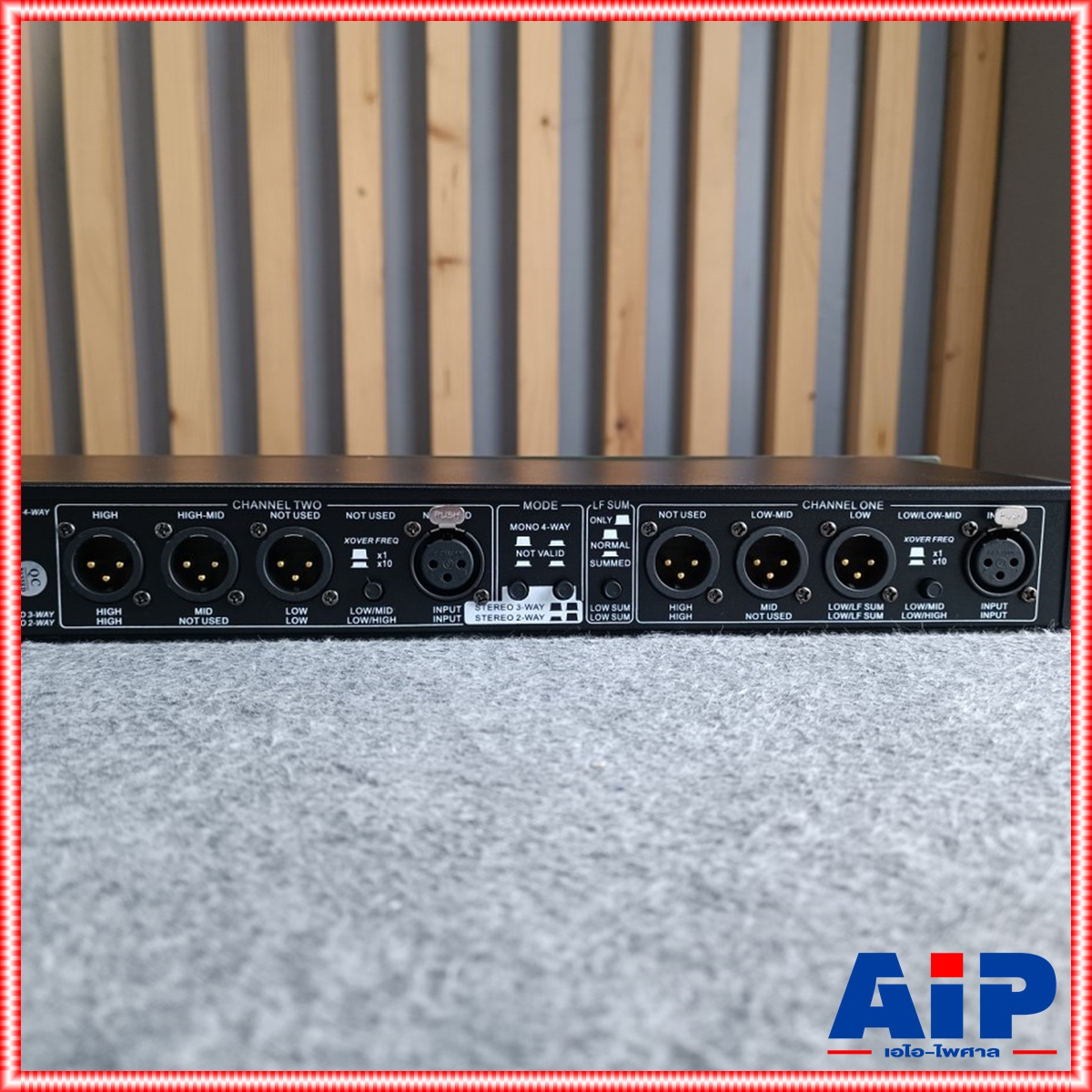

Rear Panel:

    x10:                     Multiplies crossover frequency range by 10, one switch per channel.

Mode:

LF Sum:                  Selects stereo/mono and 2/3/4-way operation.

                               Selects normal (stereo) or mono-summed low

                               frequency operation.
