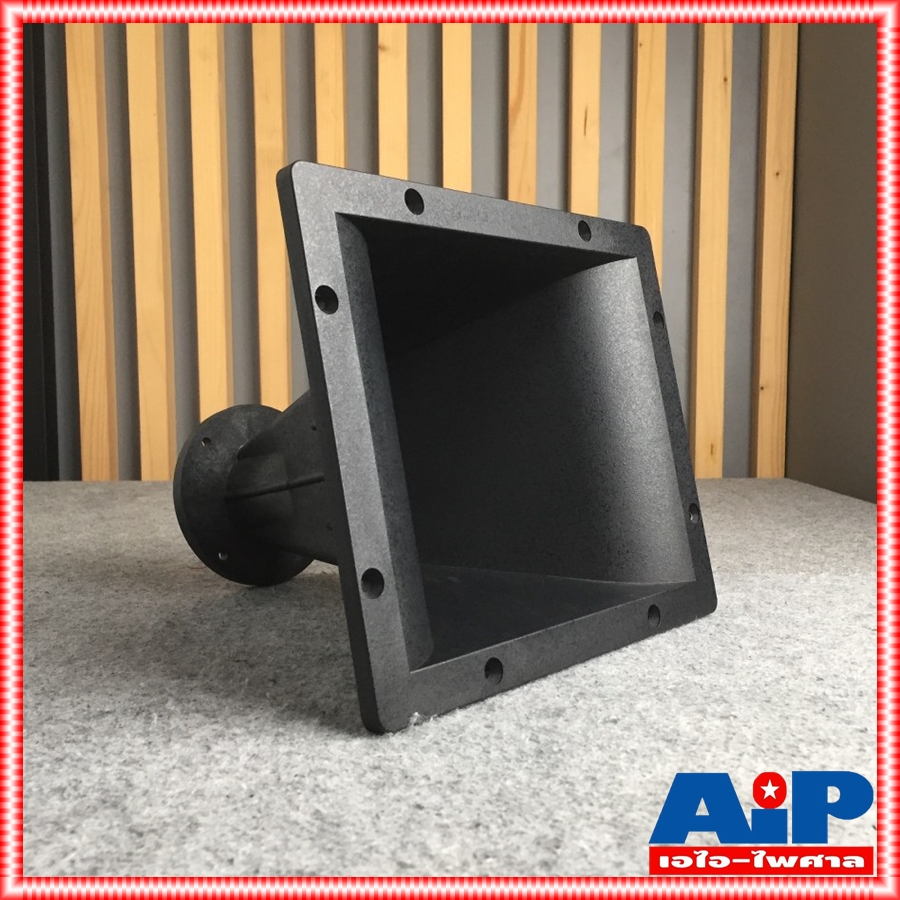

P.AUDIO PH-2723 ปากฮอร์น คอ2นิ้ว

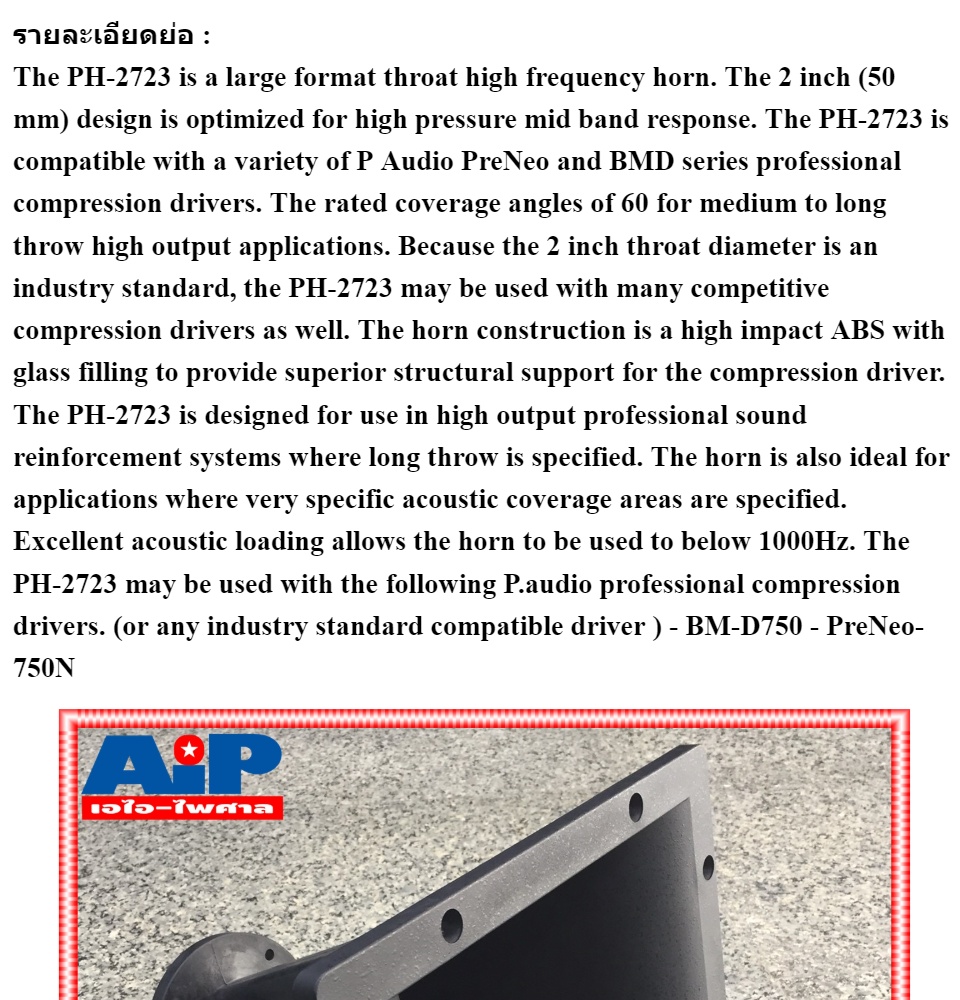

The PH-2723 is a large format throat high frequency horn. The 2 inch (50 mm) design is optimized for high pressure mid band response. The PH-2723 is compatible with a variety of P Audio PreNeo and BMD series professional compression drivers. The rated coverage angles of 60 for medium to long throw high output applications. Because the 2 inch throat diameter is an industry standard, the PH-2723 may be used with many competitive compression drivers as well. The horn construction is a high impact ABS with glass filling to provide superior structural support for the compression driver. The PH-2723 is designed for use in high output professional sound reinforcement systems where long throw is specified. The horn is also ideal for applications where very specific acoustic coverage areas are specified. Excellent acoustic loading allows the horn to be used to below 1000Hz. The PH-2723 may be used with the following P.audio professional compression drivers. (or any industry standard compatible driver ) - BM-D750 - PreNeo-750N

SPECIFICATIONS

Nominal Coverage Angle (H x V) - 6 dB : 60 x 40

Cut Off Frequency (Hz) : 500Hz

Throat Diameter : 50mm (2")

Mounting Type : BOLT ON

Construction : Injected Polymer A.B.S. with glass fiber filled Black Polycabonate

MOUTING DIMENSIONS :

Rear Height : 196 mm (7.71")

Rear Width : 207 mm (8.14")

OVERALL DIMENSIONS :

Mount Height : 232 mm (9.13")

Mount Width : 270 mm (10.62")

Length : 249 mm (9.80")

BAFFLE CUTOUT DIMENSIONS :

Height : 198 mm (7.79")

Width : 210 mm (8.26")

Net Weight : 0.92kg (2.02lbs)

Shipping Weight : 1.41kg (3.10lbs)

Packing Dimension : 290 mm x 252 mm x 300 mm
