BEHRINGER MS-8000 ULTRALINK Microphone Splitter ไมโครโฟนสปริทเตอร์ ตัวแยกไมโครโฟน 8 in/16 out ตัวแยกสัญญาณไมโครโฟน 8 แชนเนล MS 8000 MS8000 เอไอ-ไพศาล

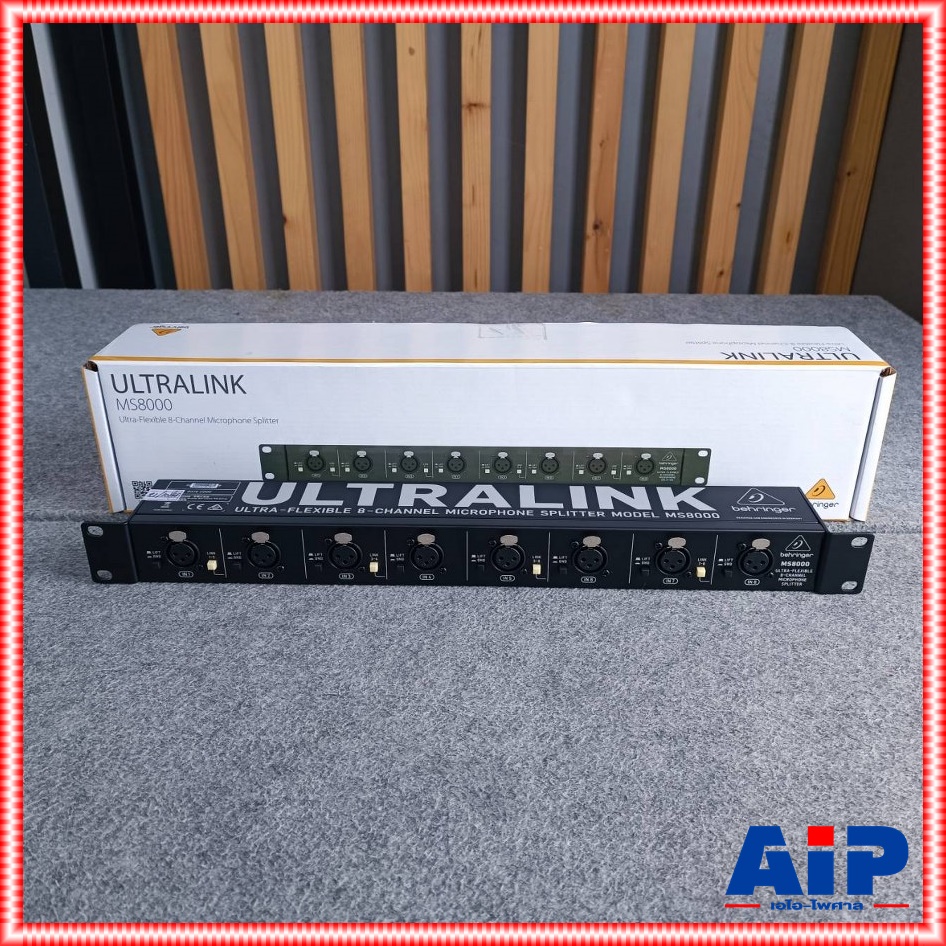

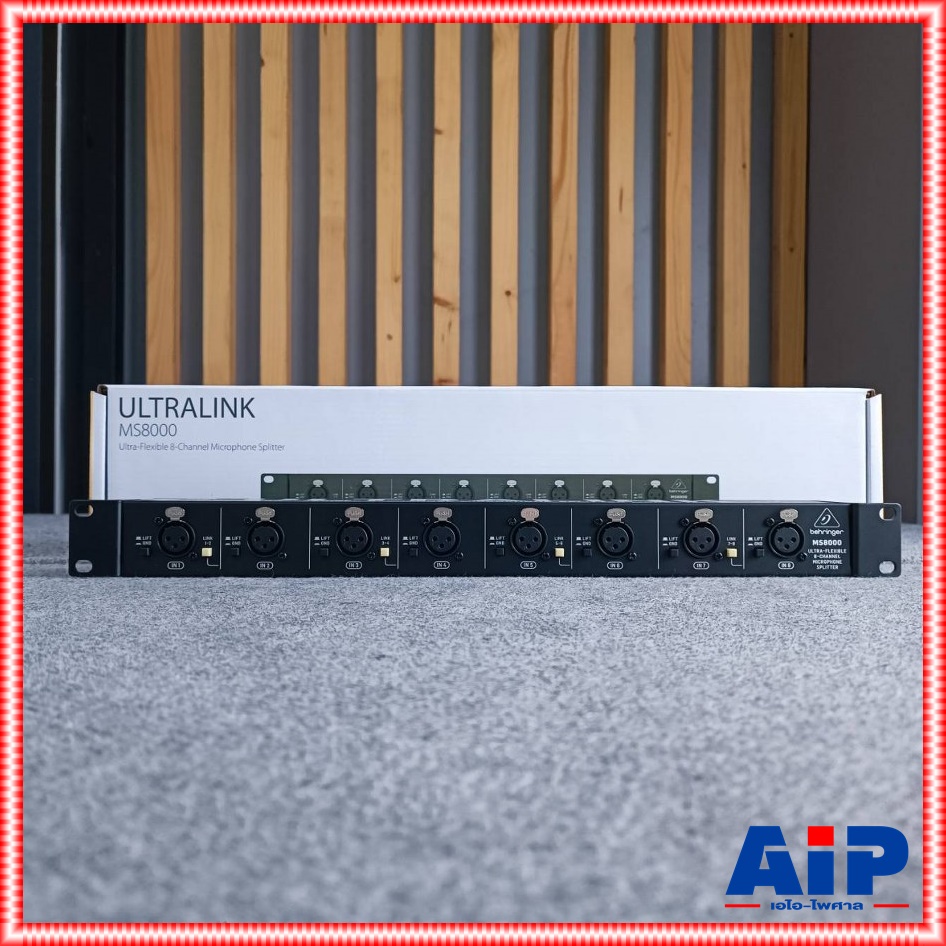

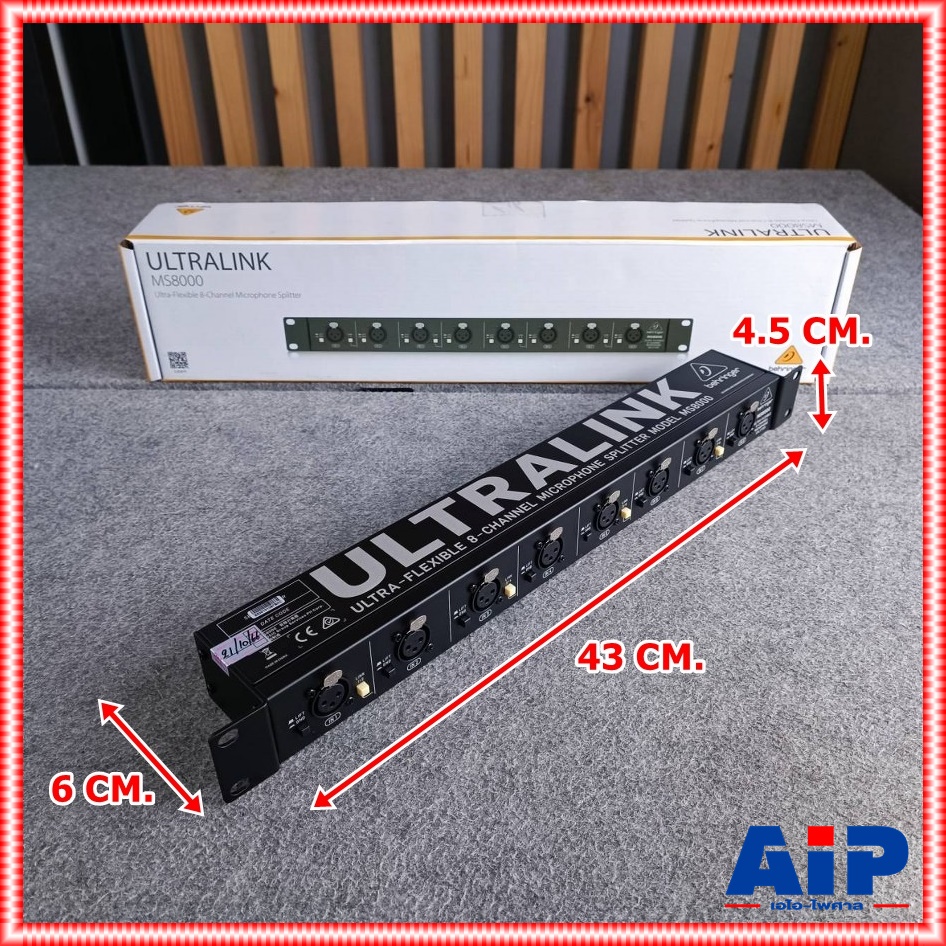

BEHRINGER MS-8000 ULTRALINK Microphone Splitter

ไมโครโฟนสปริทเตอร์ Behringer ULTRALINK MS8000 Ultra-Flexible 8-Channel Microphone Splitter, 8 in/16 out microphone splitter, Each channel features Direct and Link outputs, Phantom power link to Direct Output

รายละเอียดเพิ่มเติม

Behringer ULTRALINK MS8000 8-Channel Microphone Splitter

ไมโครโฟนสปริทเตอร์ Behringer ULTRALINK MS8000 Ultra-Flexible 8-Channel Microphone Splitter,  8 in/16 out microphone splitter, Each channel features Direct and Link outputs, Phantom power link to Direct Output

The ULTRALINK MS8000 from Behringer is an eight-channel microphone splitter suitable for recording consoles, monitoring systems, interfaces, and more. It features eight XLR inputs and sixteen XLR outputs, with each input automatically split into two outputs—one pre-transformer and one post-transformer—in order to feed different types of gear.

Press any link button on the front panel and one input will be routed into four outputs, allowing you to send a vocal mic to the FOH console, a recording interface, in-ear monitors, and a broadcast truck, all at the same time. Furthermore, this unit features ground lift switches to eliminate hum on every channel, as well as phantom power on eight of the sixteen outputs.

Features:

Ultra-low noise 8 in/16 out microphone splitter

Each channel features Direct and Link outputs

Output ground lift switch per channel

Flexible input link switches

Phantom power link to Direct Output

Designed and engineered in Germany

Specifications

Analog Audio Inputs

Connectors         8x XLR inputs

Impedance         1 kOhm, balanced

Maximum Input Level    30 dBu at 1 kHz

Controls               4x Link

8x Lift/Ground

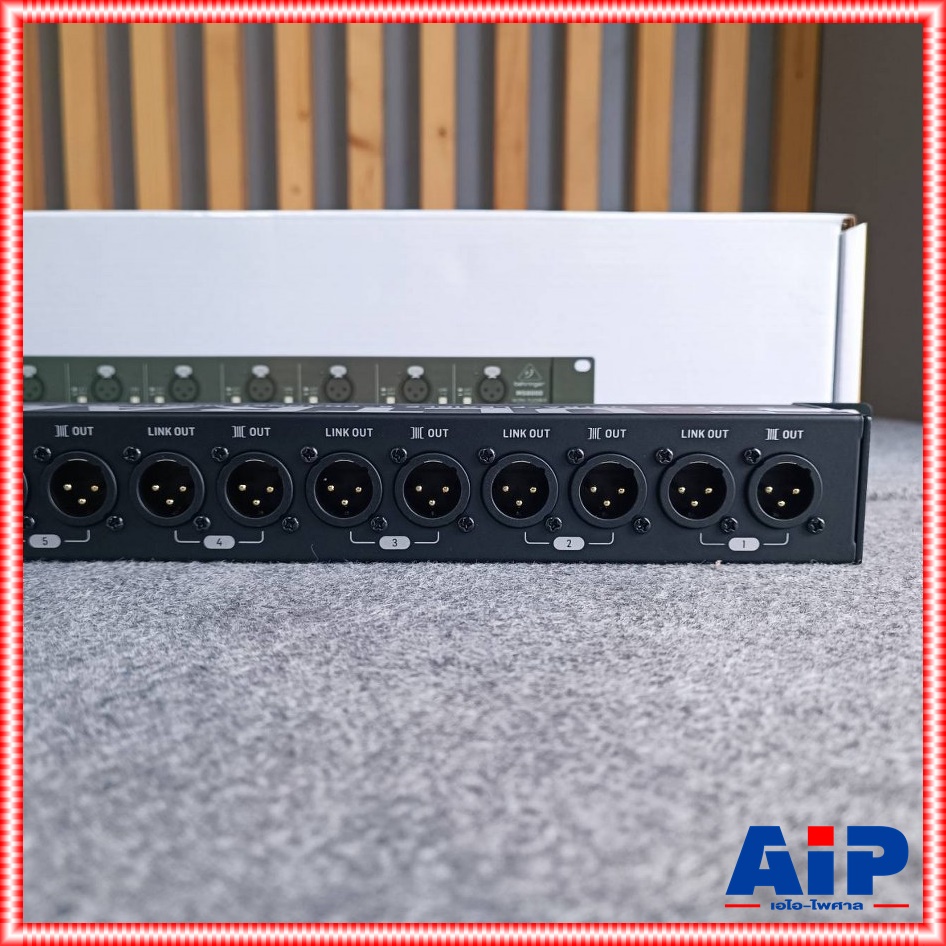

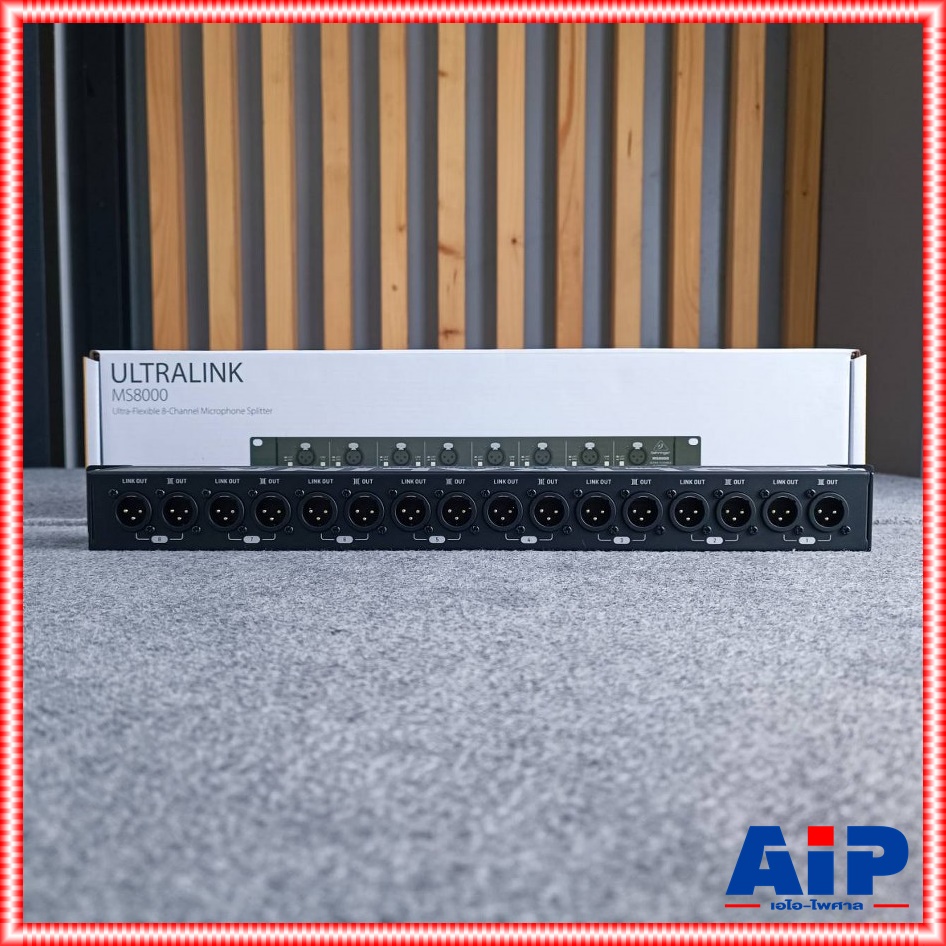

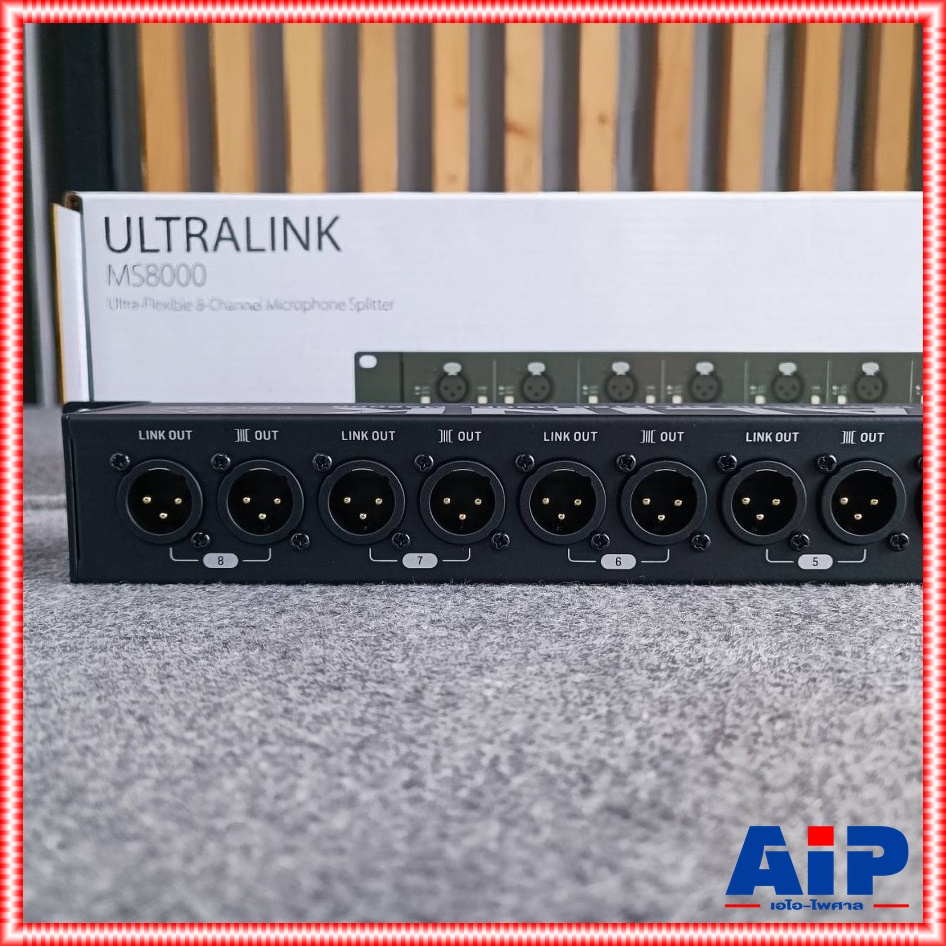

Analog Audio Outputs

Connectors         Link: 8x XLR outputs, parallel to inputs

Direct: 8x XLR outputs

Voltage Transformation Ratio     1:1.12

Impedance         2.7 kOhms, balanced

Maximum Output Level 38 dBu at 1 kHz

System

Frequency Response      30 Hz to 30 kHz (±0.5 dB at +4 dBu)

THD+N  0.02% at 1 kHz, input level +4 dBu

Signal to Noise Ratio       104 dBu

CMRR    >80 dB, typical

Insertion Loss    +8 dB at 100 kOhms

-5 dB at 600 Ohms

Power Requirement       Passive
