SHURE SLXD24A/B87-M55 ไมโครโฟนไร้สายแบบไมค์เดียว คลื่นความถี่ 694-703 MHz และ 748-758 MHz ชุดไมโครโฟนไร้สาย

     The SLXD24/B87A Wireless System delivers transparent,

24-bit digital audio and rock-solid RF performance for a wide range of applications,

from day-long presentations to nighttime performances.

Operate up to 32 compatible systems per 44 MHz band,

with easy setup and optional rechargeability accessories for wireless excellence,

wherever required.

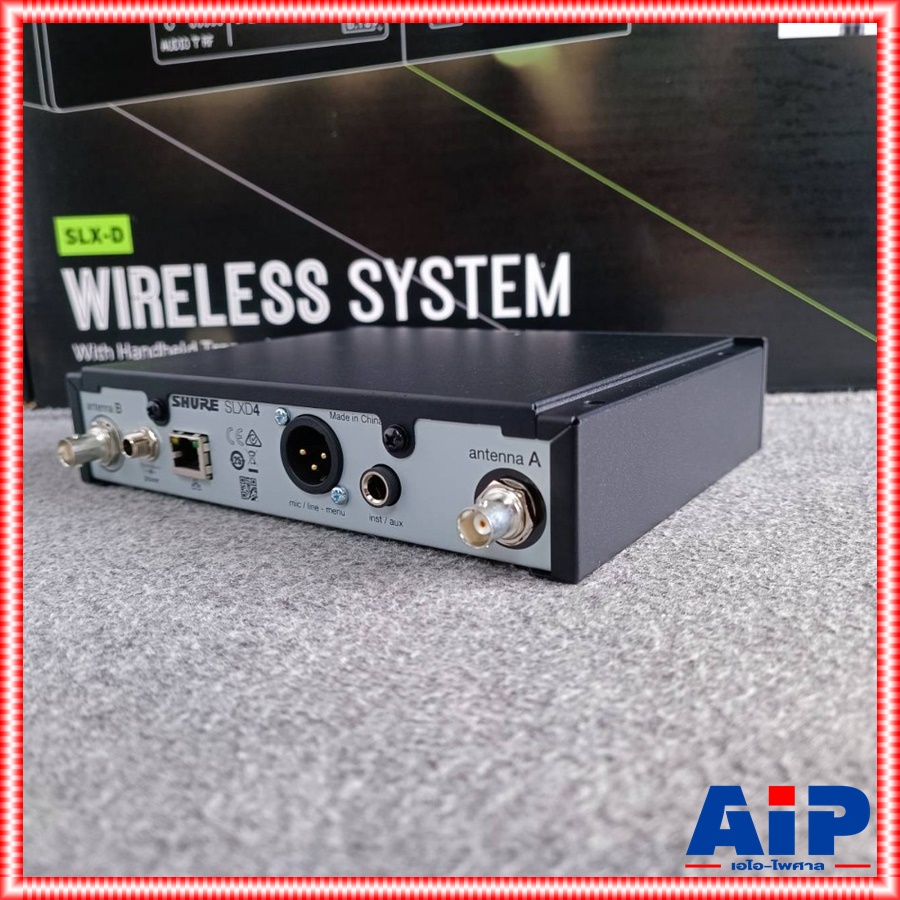

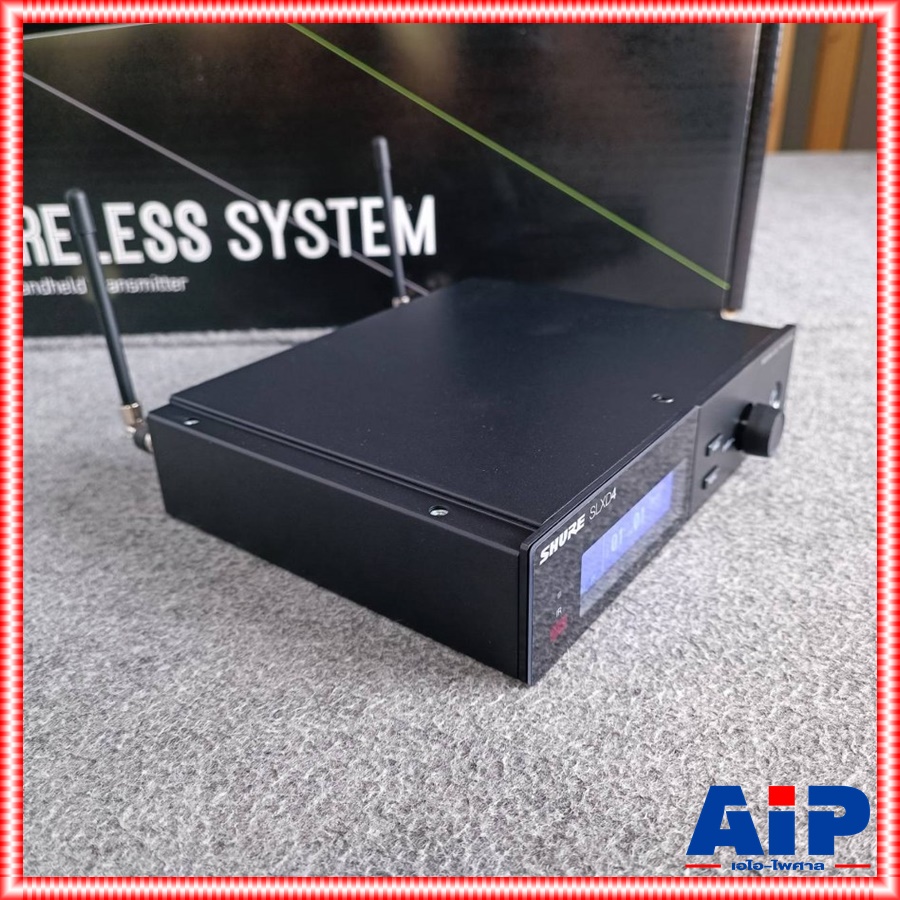

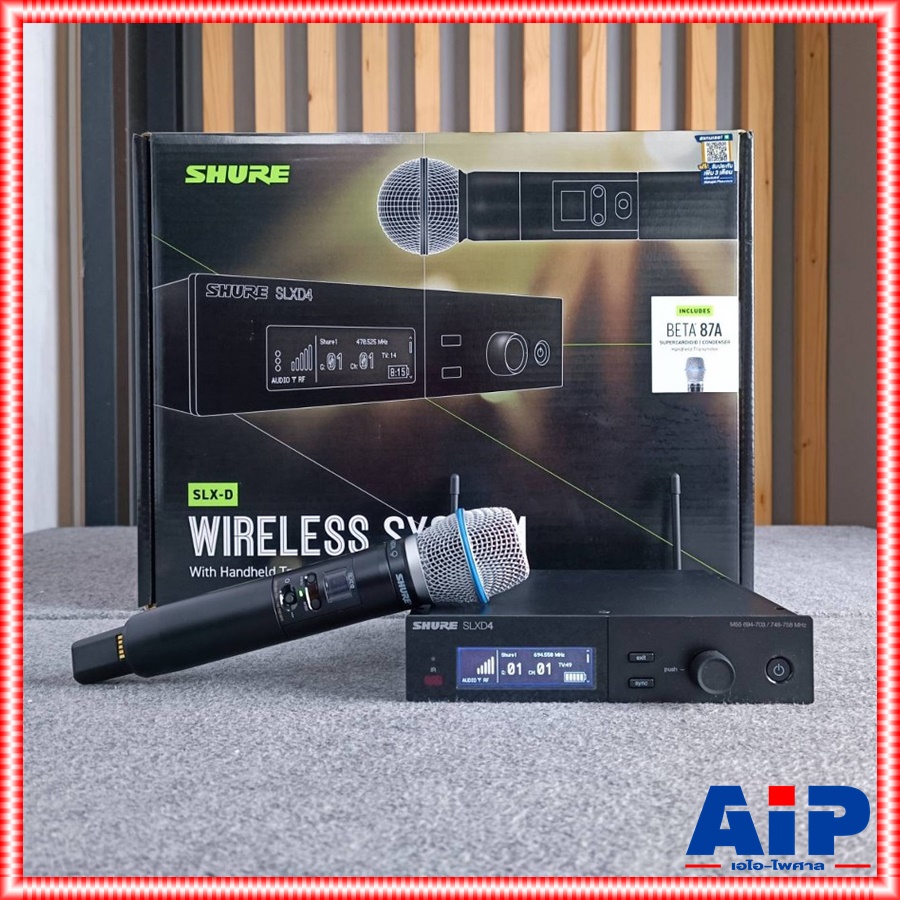

Ships with SLXD4 single-channel receiver

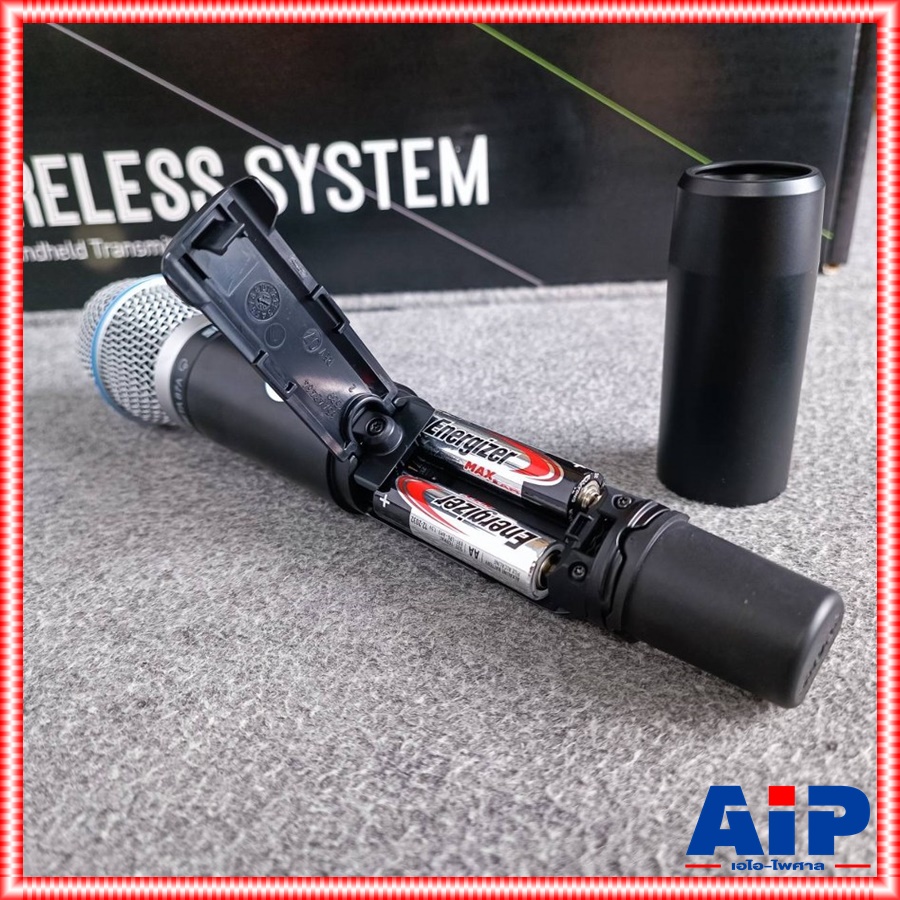

and SLXD2/B87A handheld transmitters with antenna

and rackmount accessories and 2 AA batteries.

Features: ชุดไมโครโฟนไร้สาย SHURE ไมค์ลอย shure มหาจักร

DbxsLr4MV-m3EOA_5T">

For Presenters and Performers

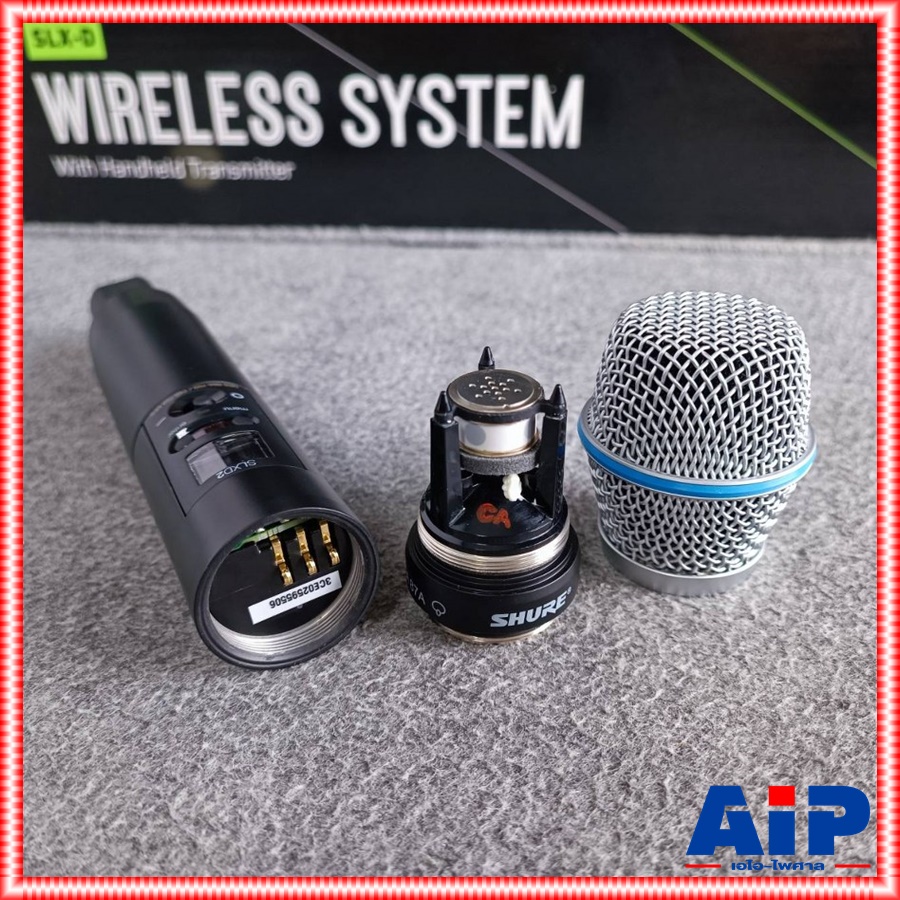

Beta 87A Supercardioid Condenser Capsule

Handheld Transmitter

Digital Predictive-Diversity Receiver

Transparent 24-bit digital audio

Extended 20 Hz to 20 kHz frequency range (microphone dependent)

120 dB dynamic range

Digital predictive switching diversity

44 MHz tuning bandwidth (region dependent)

32 available channels per frequency band (region dependent)

Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band

Easy pairing of transmitters and receivers over scan and IR sync

Rugged metal construction

Specifications ไมค์ลอย shure มหาจักร

SLXD4 DIGITAL WIRELESS RECEIVER

Dimensions (H × W × D) 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)

Weight 1.8 lb (816 g) without antennas

Housing Galvanized Steel

Power Requirements

15 VDC @ 600 mA Supplied by external power supply (tip positive)

RF INPUT

Spurious Rejection >75 dB Typical

Connector Type BNC

Impedance 50 Ω

AUDIO OUTPUT

Gain Adjustment Range

–18 to +42 dB in 1 dB steps

Configuration

1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio – Sleeve=ground)

XLR: Balanced (1=ground, 2=audio +, 3=audio –)

Impedance

1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)

XLR (line): 400 Ω (200 Ω Unbalanced)

XLR (mic): 150 Ω

Full Scale Output

1/4″ (6.35 mm): +15 dBV differentially (+9 dBV single)

XLR (LINE setting): +15 dBV

XLR (MIC setting): –15 dBV

Mic/Line Switch

30 dB pad

Phantom Power Protection

1/4″ (6.35 mm): Yes

XLR: Yes

NETWORKING

Network Interface Single

Port Ethernet 10/100 Mbps

Network Addressing Capability

DHCP or Manual IP address

Maximum Cable Length

100 m (328 ft)

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER

Battery Type Rechargeable Li-Ion or 1.5 V AA batteries

Dimensions (Dia. × L) 1.46 × 6.93 in (37.1 × 176 mm)

Weight 5.2 oz. (147 g)

Housing Aluminum

AUDIO INPUT

Configuration Aluminum

Maximum Input Level

8.2 dBV (2.57 Vrms, 7.27 Vpp)

Note: Dependent on Microphone Type

RF OUTPUT

Antenna Type Integrated Single-Band Helical

Occupied Bandwidth <200 kHz

Modulation Type Shure Propietary Digital

Power 1 mW/10 mW Varies by region.

 See Frequency Range and Output Power Table.
