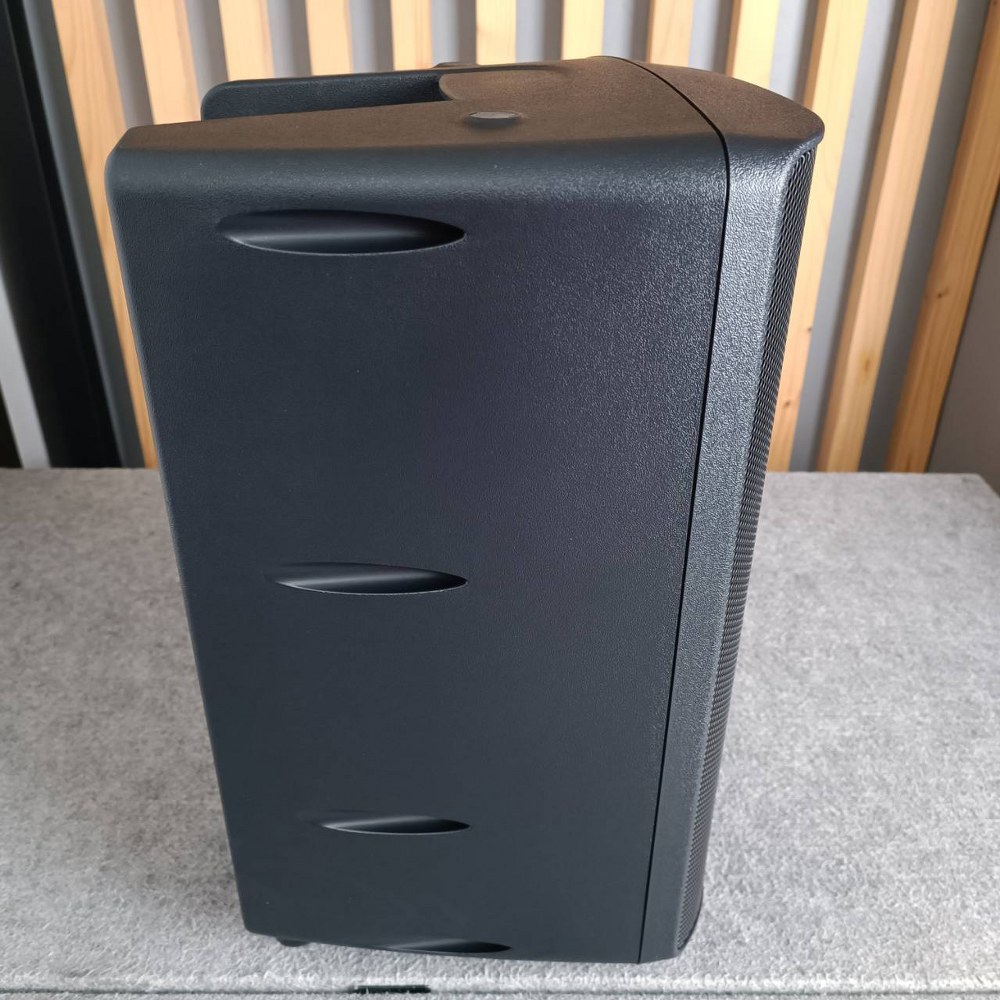

TOPPPRO X-10A MKII active speaker Bluetooth ตู้ลำโพงพลาสติก 10" ตู้ลำโพงเสียงกลาง มีแอมป์ในตัว ลำโพง TOPP-PRO X 10A TOPP PRO X10A เอไอ-ไพศาล

TOPPPRO X-10A MKII

active speaker Bluetooth

SYSTEM : 10" 2 Way Full Range Active Ported Speaker

FREQ : 72 Hz - 20 kHz (-3dB) / 65 Hz - 20 kHz (-10dB)

CROSS : 2.5 kHz

OUTPUT : HF 30Wrms / LF 120Wrms , (600Wpeak)

              MAX SPL (dB-SPL@1m) : 89 dB / 117 dB (peak)

TRANSDUCERS : High 1" Titanium Diaphragm Driver , Low 10"

DIMENSIONS (WxDxH) : 287 x 277 x 462 mm

N.W. : 7.08 kg / 15.6 lbs.

SYSTEM TYPE : 10" 2 Way Full Range Active Ported Speaker
POWER SYSTEM : Class D SMPS (Bi-Amp , LF 120Wrms + HF 30Wrms), 600Wpeak
CONTINUOUS POWER : Low : 120W / High : 30W
PROGRAM POWER : Low : 240W / High : 60W
TRANSDUCERS : High 1" Titanium Diaphragm Driver , Low 10"
CROSSOVER FREQUENCY : 2.5 kHz
MAXIMUM SPL : 117 dB(Peak) , 89 dB (Continuous) (dB-SPL @ 1 m)
FREQUENCY RESPONSE : 72 Hz - 20 kHz (-3 dB)
FREQUENCY RANGE : 65 Hz - 20 kHz (-10 dB)
HORN COVERAGE : 90 degree Horizontal x 60 degree Vertical (nominal)
EQUALIZATION : Contour Switch with low - and High - Frequency +3 dB Boost
CONNECTORS : 1 XLR Balanced Input (Line/Mic) , 1 XLR mix Output (Link)
: 1 IEC Power Cable Input
BLUETOOTH STEREO : Stereo L/R - VOL - Pair - Link Switch
CONTROL : Volume Control knob, Power switch, Contour switch, Line/Mic Toggle switch
INDICATORS : Power ON with Green LED, Clip Limiter with Red LED, (2)Bluetooth Pair/Link LED
POWER : Connector : IEC
Voltage : 110 - 120 Vac, 220 - 240 Vac, 50/60 Hz, Switchable
Fuse : 100 - 120 V T3.15AL AC 250 V, or 220 - 240 V T1.6AL AC 250 V
Consumption : 180W
PROTECTION : THERMAL, Overload Analog Limitmer, Compressor
ENCLOSURE : Injection - molder polypropylene, Multi - angle for main or Monitor Applications,
Metal grille, Rubber feet, Handle on top
MOUNTING / INSTALLATION : Standard 36 mm pole socket, Wedge monitor
DIMENSIONS (WxDxH) : 287 x 277 x 462 mm ; N.W. : 7.08 kg / 15.6 lbs.
